Microchip Technology's PIC16F1503-I/MG Microcontroller

The PIC16F1503-I/MG is a high-performance, 8-bit microcontroller from Microchip Technology's renowned PIC16F family. This compact yet powerful MCU is designed to support a wide range of applications, from industrial control systems to consumer electronics, thanks to its versatile feature set and efficient operation.

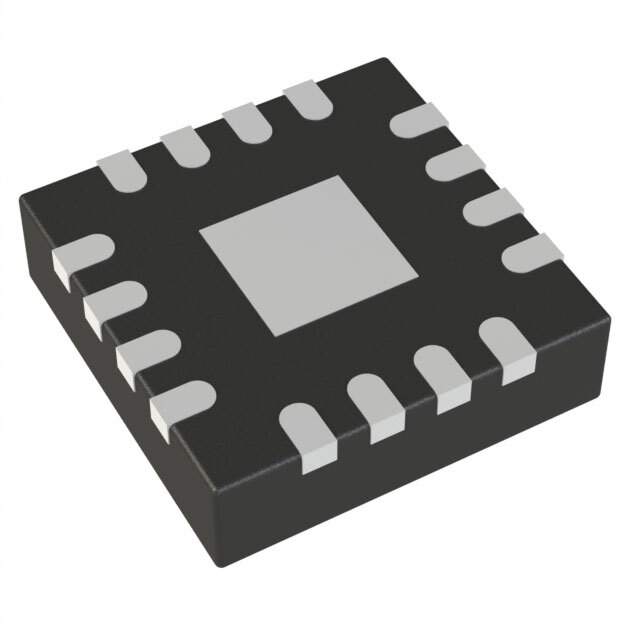

Housed in a 16-pin QFN package, the PIC16F1503-I/MG offers a robust platform for embedded system designers. It operates at a voltage range of 2.5V to 5.5V, making it suitable for low-power and battery-operated devices. With an industrial temperature range of -40°C to +85°C, this microcontroller is capable of reliable performance in harsh environments.

One of the standout features of the PIC16F1503-I/MG is its integrated 10-bit Analog-to-Digital Converter (ADC), which provides precise measurement capabilities for analog signals. This is particularly useful in applications requiring sensor interfacing and data acquisition. Additionally, the device includes two PWM modules, which enable smooth control over motors and other actuators.

The microcontroller boasts a 14 KB Flash memory and 256 bytes of RAM, ensuring ample space for program storage and efficient data handling. Its self-programmable under software control, which allows for in-circuit updates and reduces the need for external programming tools. The PIC16F1503-I/MG also features an Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels, which facilitates faster and more complex computations while maintaining code efficiency.

For communication purposes, this MCU includes an Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module, which supports serial communication protocols such as RS-232, RS-485, and LIN. This makes it easy to integrate into existing communication infrastructures and to interface with other devices.

Furthermore, the PIC16F1503-I/MG is equipped with various safety and reliability features, such as Power-On Reset (POR), Power-up Timer (PWRT), and Oscillator Start-up Timer (OST), which help ensure proper operation from startup. Brown-out Reset (BOR) and Extended Watchdog Timer (WDT) safeguard against unexpected power dips and software lock-ups.

With its rich set of peripherals, low-power operation, and robust design, the PIC16F1503-I/MG from Microchip Technology is an excellent choice for designers seeking a versatile and reliable microcontroller for their next project.
