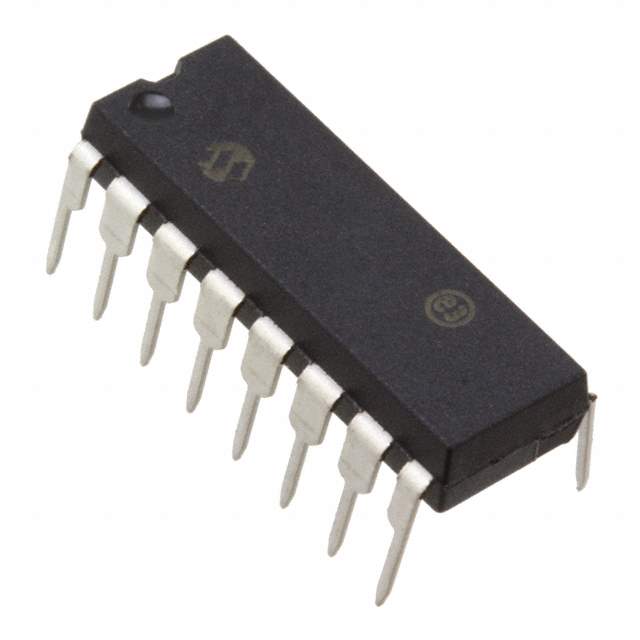

Microchip Technology's RE46C180E16F Smoke Detector IC

The RE46C180E16F is a sophisticated and reliable ionization type smoke detector integrated circuit (IC) designed and produced by Microchip Technology. This IC is specifically engineered to offer a comprehensive solution for smoke detection in residential and commercial security systems. It is a low-power device that ensures long-term operation, typically powered by a 9V battery, making it an ideal choice for standalone smoke detectors.

One of the key features of the RE46C180E16F is its built-in horn driver, which is capable of driving a piezoelectric horn directly. This allows for an efficient alert system that can notify occupants promptly in the event of smoke detection. Additionally, the IC includes a low-battery detection feature that alerts users when the battery voltage drops below a critical threshold, ensuring the smoke detector remains operational at all times.

The RE46C180E16F also boasts an interconnect pin that allows multiple units to be connected, enabling all connected detectors to sound an alarm when one unit detects smoke. This interconnected feature significantly enhances safety by providing a robust system for larger installations where multiple detectors are necessary.

With its high immunity to external interference and built-in RF protection, the RE46C180E16F maintains its reliability in various environmental conditions. The IC also includes a timer mode that provides temporal control over the horn, enabling it to meet regulatory standards for alarm patterns.

Furthermore, the RE46C180E16F incorporates a test mode that simplifies the end-user testing process. This feature ensures that the smoke detector can be easily checked for proper functionality, maintaining the device's reliability and performance over time. The IC's design includes an oscillator strobe output, gain selection, and an internal power-on reset feature, making it a versatile and robust choice for smoke detection applications.

In summary, the RE46C180E16F from Microchip Technology is an advanced smoke detector IC that offers a multitude of features designed to ensure safety, ease of use, and reliability. Its integration into smoke detectors helps provide peace of mind through efficient and effective fire detection and alert systems.
