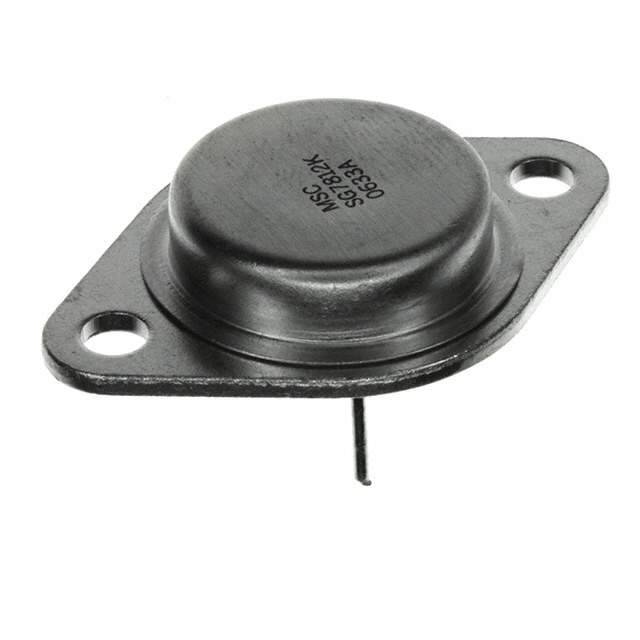

Microchip Technology SG7812K Voltage Regulator

The SG7812K from Microchip Technology is a robust, reliable, and high-quality voltage regulator designed to maintain a stable 12V output voltage. This component is part of the SG7800A series of positive fixed voltage regulators that are notable for their exceptional performance in various applications, including consumer electronics, industrial hardware, and computing devices.

With a guaranteed output voltage tolerance of ±2% at an input voltage range of up to 35V, the SG7812K is an excellent choice for systems that require a consistent power supply. The device is capable of delivering an output current of up to 1.5A, making it suitable for moderate to high-power applications. Its thermal overload protection ensures that the device and your system remain safe, even under conditions of excessive power demand or elevated temperatures.

The SG7812K also features short-circuit protection, which contributes to the overall durability and longevity of the regulator by preventing damage due to unexpected current spikes. Additionally, the no-load stability ensures that the voltage regulator will not malfunction or become unstable when the output load is removed.

The design of the SG7812K is optimized for ease of use in a variety of circuit configurations. It comes in a TO-220 package, which is widely used and favored for its ease of mounting and heat dissipation properties. The TO-220 package allows for efficient thermal management, ensuring that the SG7812K operates within its specified temperature range even under full load conditions.

Overall, the SG7812K is a testament to Microchip Technology's commitment to providing high-quality, reliable components. Whether you are designing power supplies, motor controls, or any other application that demands a stable 12V power source, the SG7812K is an excellent choice that combines performance, protection features, and ease of integration into your design.
