The MT45W4MW16BBB-706WT is a high-speed Mobile Low-power SDRAM (LPSDR) device manufactured by Micron Technology Inc. It's designed for mobile applications requiring low power consumption and high bandwidth. This LPSDR device features a 4 Meg x 16 configuration and operates at a high clock frequency, providing fast data access.

Applications:

• Mobile devices (e.g., smartphones, tablets)
• Wearable technology (e.g., smartwatches, fitness trackers)
• Embedded systems
• Digital cameras
• Portable gaming devices

Features:

• 4 Meg x 16 organization
• Low-power SDRAM (LPSDR) technology
• High-speed operation (706WT indicates a specific speed grade)
• Double data rate (DDR) interface
• Clock frequency up to a specified maximum (consult datasheet for exact value)
• Partial array self refresh (PASR)
• Deep power-down mode for ultra-low power consumption

Benefits:

• Extended battery life: Low power consumption is crucial for mobile applications.
• High bandwidth: DDR interface allows for rapid data transfer.
• Improved system performance: High-speed operation enhances overall system responsiveness.
• Reduced system cost: Integrated features simplify system design and reduce the need for external components.
• Flexible power management: PASR and deep power-down mode allow for optimized power consumption.

Additional Details:

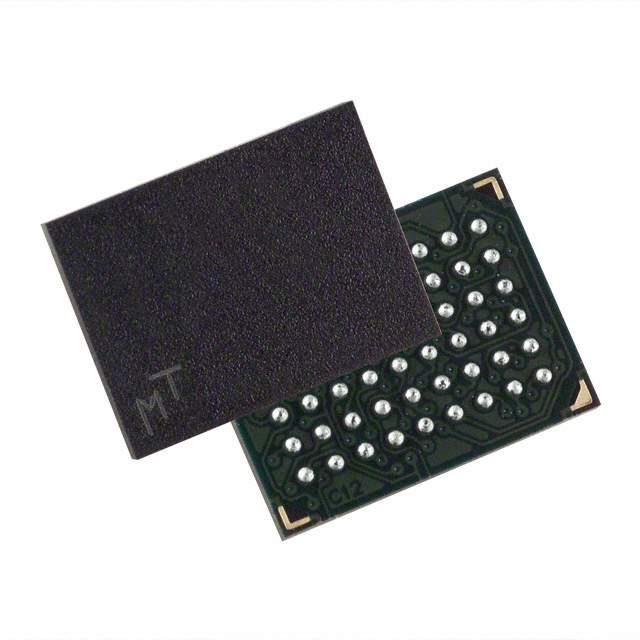

The MT45W4MW16BBB-706WT typically operates on a supply voltage of 1.8V or 1.2V, depending on the specific configuration and power mode. It supports various power-saving modes to minimize energy consumption during idle periods. The device is available in a compact package, such as a Ball Grid Array (BGA), making it suitable for space-constrained mobile devices. Its operating temperature range is generally from -25°C to +85°C. The datasheet provides detailed timing characteristics, electrical specifications, and package dimensions. Proper PCB layout is crucial for maintaining signal integrity and ensuring reliable high-speed operation. The -706WT suffix indicates a specific speed grade; refer to the datasheet for its precise timing parameters and maximum clock frequency. It also incorporates features like write protection and burst modes for efficient data transfer.
