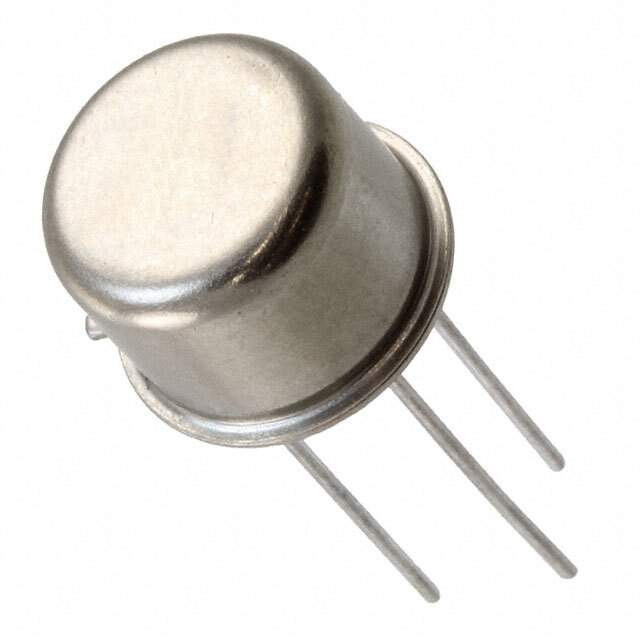

The Microsemi 2N2323S is a silicon controlled rectifier (SCR) designed for medium-power switching applications. It is housed in a hermetically sealed package, ensuring high reliability and performance in harsh environments.

Applications

• Phase control circuits
• Power switching circuits
• Motor speed control
• Lighting control
• Voltage regulation

Features

• High Blocking Voltage: High forward and reverse blocking voltage capability.
• Low Holding Current: Requires minimal current to maintain conduction.
• High Surge Current Capability: Withstands high surge currents.
• Hermetically Sealed Package: Provides environmental protection.
• Fast Switching Speed: Enables rapid switching operations.
• Sensitive Gate Triggering: Requires a low gate current for triggering.

Benefits

• Efficient Power Control: Allows precise control of AC power.
• Reliable Performance: Hermetically sealed package ensures long-term reliability.
• Overload Protection: High surge current capability protects against overloads.
• Versatile Applications: Suitable for a wide range of power control applications.
• Simplified Circuit Design: Sensitive gate triggering simplifies the drive circuitry.

Additional Details

The 2N2323S SCR is designed for robust performance in demanding environments. Its hermetically sealed package provides protection against moisture, dust, and other contaminants. The device is commonly used in industrial and commercial applications where reliable power control is essential.
