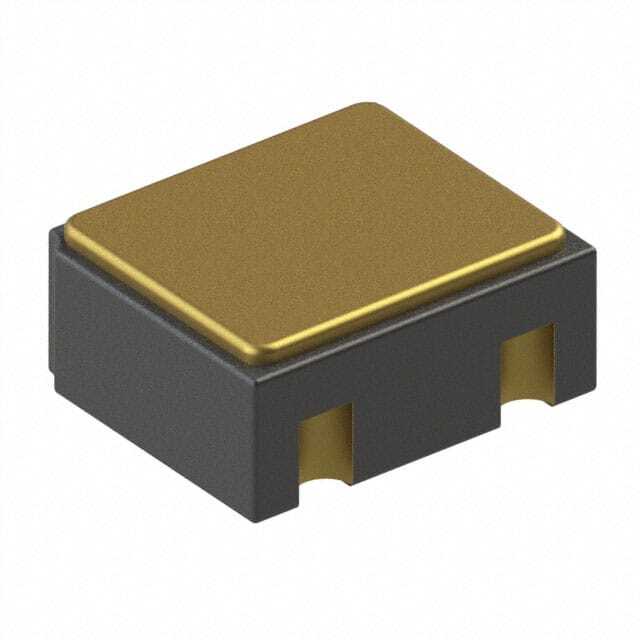

Same model may have multiple batches, images only for reference.
JANTX2N3636UB/TR Microsemi Corporation – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

JANTX2N3636UB/TR

Part No JANTX2N3636UB/TR
Manufacturer Microsemi Corporation
Catalog Transistors (BJT) - Single
Description TRANS PNP 175V 10UA UB
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Package Bulk
Product Status Active
Transistor Type PNP
Current - Collector (Ic) (Max) 10 µA
Voltage - Collector Emitter Breakdown (Max) 175 V
Vce Saturation (Max) @ Ib, Ic 600mV @ 5mA, 50mA
Current - Collector Cutoff (Max) 10µA
DC Current Gain (hFE) (Min) @ Ic, Vce 50 @ 50mA, 10V
Power - Max 1.5 W
Operating Temperature -65°C ~ 200°C (TJ)
Grade Military
Qualification MIL-PRF-19500/357
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Supplier Device Package UB
Ultra Librarian 3D Model Ultra Librarian JANTX2N3636UB/TR CAD Model
