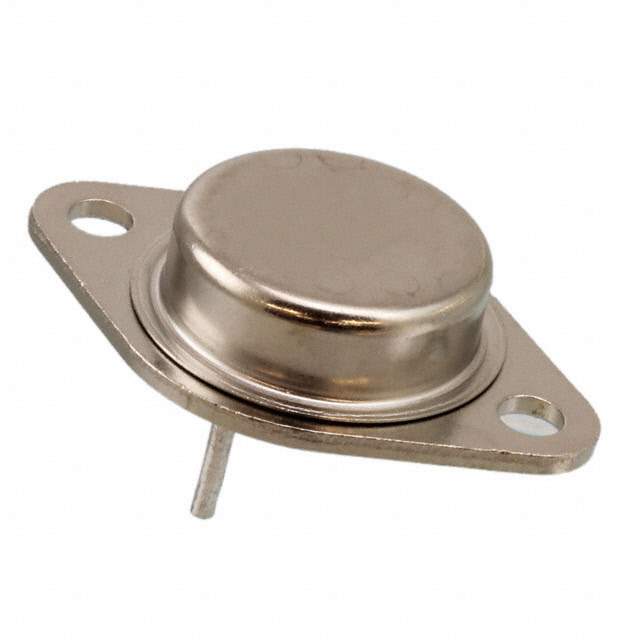

JANTX2N6274

Part No JANTX2N6274
Manufacturer Microsemi Corporation
Catalog Transistors (BJT) - Single
Description TRANS NPN 100V 50A TO-3
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Series Military, MIL-PRF-19500/514
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 50A
Voltage - Collector Emitter Breakdown (Maximum) 100V
Vce Saturation (Maximum) @ Ib, Ic 3V @ 10A, 50A
Current - Collector Cutoff (Maximum) 50μA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 30 @ 20A, 4V
Power - Max 250W
Operating Temperature Range -65°C ~ 200°C (TJ)
Mounting Style Through Hole
Package TO-204AE
Manufacturer Package TO-3
Win Source Part Number 762283-JANTX2N6274
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name 2N6274
Introduction Date April 18, 1999
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian JANTX2N6274 CAD Model

Description

The JANTX2N6274 is a silicon NPN power transistor manufactured by Microsemi Corporation. This transistor is designed and tested to meet stringent military specifications (JANTX) for high-reliability applications. It is commonly used in power switching, amplification, and motor control circuits in military, aerospace, and industrial equipment.

Applications:

  • Power switching: Used in switching regulators, inverters, and DC-DC converters.
  • Amplification: Provides high-gain amplification in audio and RF circuits.
  • Motor control: Drives motors in various applications, such as robotics and industrial automation.
  • Solenoid drivers: Controls solenoids in electromechanical systems.
  • Power supplies: Used as a switching element in power supplies.

Features:

  • NPN Transistor: Provides a specific polarity for circuit design.
  • JANTX Qualified: Manufactured and tested to meet stringent military specifications.
  • High Voltage Rating: Withstands high voltage levels.
  • High Current Rating: Handles high current loads.
  • Low Saturation Voltage: Minimizes power dissipation.
  • Fast Switching Speed: Enables efficient switching operation.

Benefits:

  • Efficient Power Conversion: Low saturation voltage and fast switching speed reduce power losses.
  • Reliable Operation: Designed for long-term, dependable performance in harsh environments.
  • Circuit Protection: Protects circuits from overcurrent and overvoltage conditions.
  • Improved Circuit Performance: High gain and fast switching speed optimize circuit operation.
  • High-Quality Component: Manufactured to meet stringent quality standards.

Additional Details:

The JANTX2N6274 is typically packaged in a TO-3 or similar hermetically sealed package. Key electrical characteristics include collector-emitter voltage (VCEO), collector current (IC), and power dissipation (PD). Consult the datasheet for precise specifications and application guidelines. Proper heat sinking is essential for reliable operation at high power levels.
