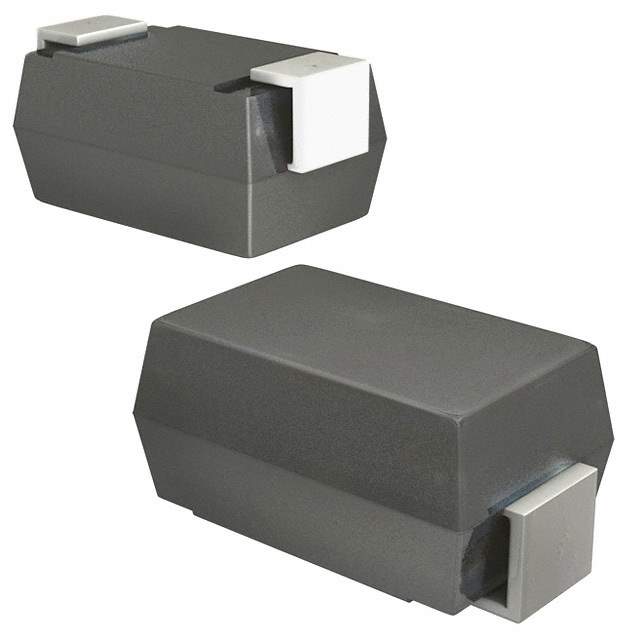

LSM115JE3/TR13 Real Image
Same model may have multiple batches, images only for reference.

LSM115JE3/TR13

Part No LSM115JE3/TR13
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 15V 1A DO214BA / Diode Schottky 15V 1A 2-Pin DO-214BA T/R
Datasheet
LSM115JE3/TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Reel package
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 15V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Maximum) @ If 220mV @ 1A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 10mA @ 15V
Mounting SMD
Package DO-214AA, SMB
Manufacturer Package DO-214BA
Operating Temperature - Junction -55°C ~ 150°C
Win Source Part Number 780100-LSM115JE3/TR13
Popularity Medium
Supply and Demand Status Balance
Family Name LSM115J
Introduction Date April 11, 2000
ECCN EAR99
Country of Origin China, Taiwan
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian LSM115JE3/TR13 CAD Model

Description

The Microsemi Corporation 780100-LSM115JE3/TR13 is a Schottky diode.

  • Package Type: DO-214AA, SMB
  • Mounting Type: SMD
  • Fast Recovery: 200mA (Io)
  • Current Average Rectified (Io): 1A
  • Current Reverse Leakage: 10mA @ 15V
  • Voltage DC Reverse (Vr): 15V
  • Family Name: LSM115J
  • Voltage Forward (Vf) (Maximum): 220mV @ 1A
  • Introduction Date: April 11, 2000
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
