Same model may have multiple batches, images only for reference.

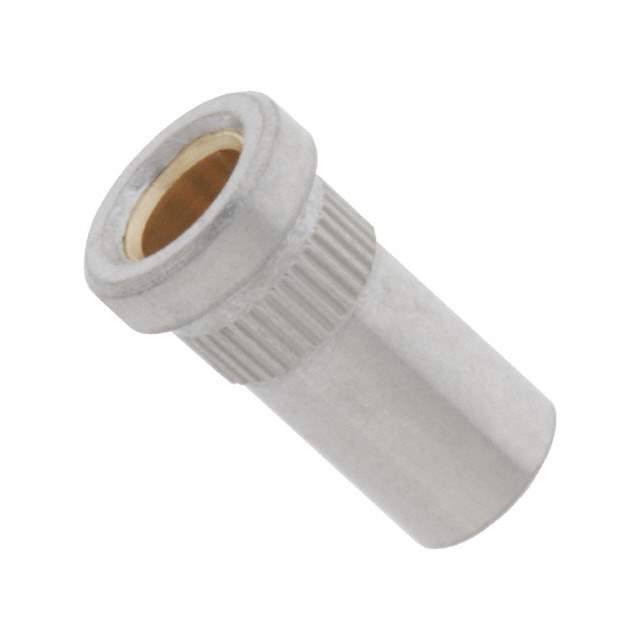

0366-0-15-01-13-27-10-0 Real Image
Same model may have multiple batches, images only for reference.

0366-0-15-01-13-27-10-0

Part No 0366-0-15-01-13-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .048-.064 PRESSFIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Packaging Bulk
Status Active
Tail Type No Tail
Termination Press-Fit
Length - Overall 0.250" (6.35mm)
Accepts Pin Diameter 0.048" to 0.064" (1.22mm to 1.63mm)
Mounting Hole Diameter 0.109" (2.77mm)
Pin Hole Diameter 0.088" (2.24mm)
Flange Diameter 0.137" (3.48mm)
Socket Depth 0.250" (6.35mm)
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Temperature Range - Operating -55°C to 125°C
Win Source Part Number 1032244-0366-0-15-01-13-27-10-0
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian 0366-0-15-01-13-27-10-0 CAD Model

Description

The Mill-Max Manufacturing Corp. 1032244-0366-0-15-01-13-27-10-0 is a high-quality connector that is perfect for various applications.

  • Package: Bulk
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Overall Length: 0.250" (6.35mm)
  • Accepts Pin Diameter: 0.048" to 0.064" (1.22mm to 1.63mm)
  • Supply and Demand: Balanced
  • Quantity per Package: 500
  • Manufacturer: Mill-Max Manufacturing Corp.
