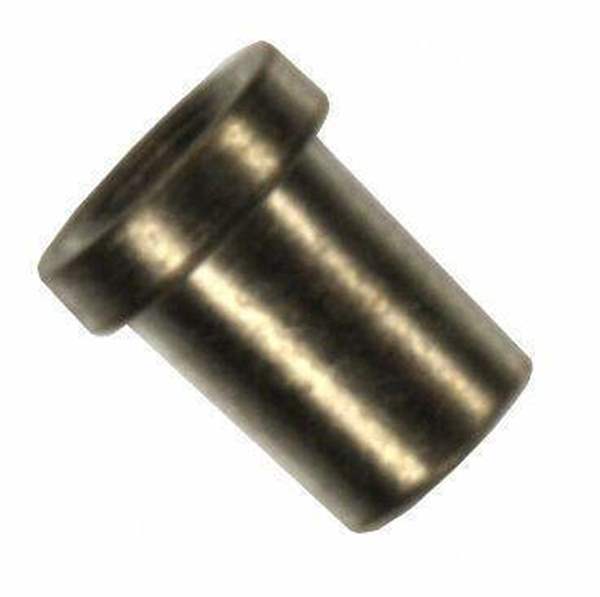

4280-0-67-80-16-27-10-0 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

4280-0-67-80-16-27-10-0

Part No 4280-0-67-80-16-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .022-.034 SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Mill-Max Manufacturing Corp.
Category Connectors, Interconnects Terminals PC Pin Receptacles, Socket Connectors
Product Status Active
Tail Type No Tail
Termination Solder
Length - Overall 0.100" (2.54mm)
Accepts Pin Diameter 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Pin Hole Diameter 0.051" (1.30mm)
Mounting Hole Diameter 0.067" (1.70mm)
Flange Diameter 0.078" (1.98mm)
Win Source Part Number WS1208425-4280-0-67-80-16-27-10-0
Ultra Librarian 3D Model Ultra Librarian 4280-0-67-80-16-27-10-0 CAD Model

Description

Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) No Tail Solder
