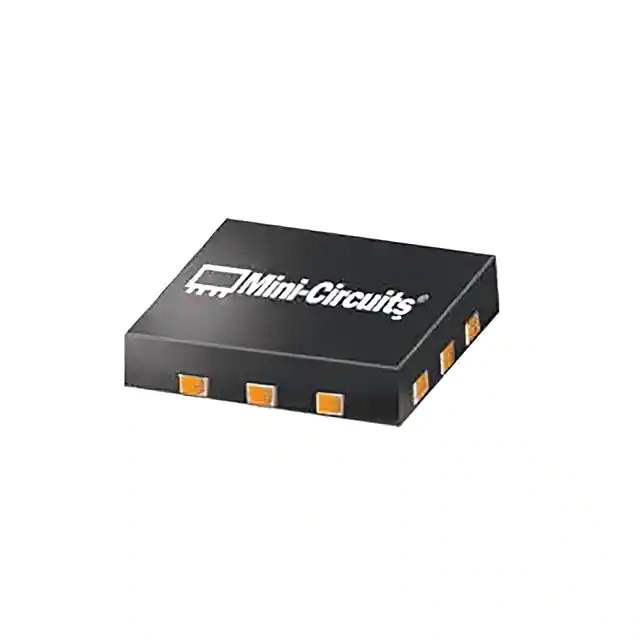

JSW2-63DR+ Real Image
Same model may have multiple batches, images only for reference.

JSW2-63DR+

Part No JSW2-63DR+
Manufacturer Mini-Circuits
Catalog RF Switches
Description IC RF SWITCH SPDT 6GHZ 12QFN
Datasheet
JSW2-63DR+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
RF Type CATV, SatCom
Topology Reflective
Circuit SPDT
Frequency Range 5MHz ~ 6GHz
Isolation 21dB
Insertion Loss 0.57dB
Test Frequency 6GHz
IIP3 62dBm
Impedance 50Ohm
Voltage - Supply 2.3V ~ 4.8V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 12-UFQFN Exposed Pad
Supplier Device Package 12-QFN (2x2)
Base Product Number JSW2-63
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 753878-JSW2-63DR+
Ultra Librarian 3D Model Ultra Librarian JSW2-63DR+ CAD Model

Description

The 753878-JSW2-63DR+ is an RF switch with SPDT circuit topology.

  • Impedance: 50Ohm
  • Test Frequency: 6GHz
  • Frequency Range: 5MHz to 6GHz
  • Insertion Loss: 0.57dB
  • Isolation: 21dB
  • Package Size: 12-UFQFN exposed pad
  • Package: 12-QFN (2x2)
  • Mounting: surface mount
  • Applications: CATV and SatCom
  • Voltage Supply: 2.3V to 4.8V
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Mini-Circuits
  • Market Status: active
