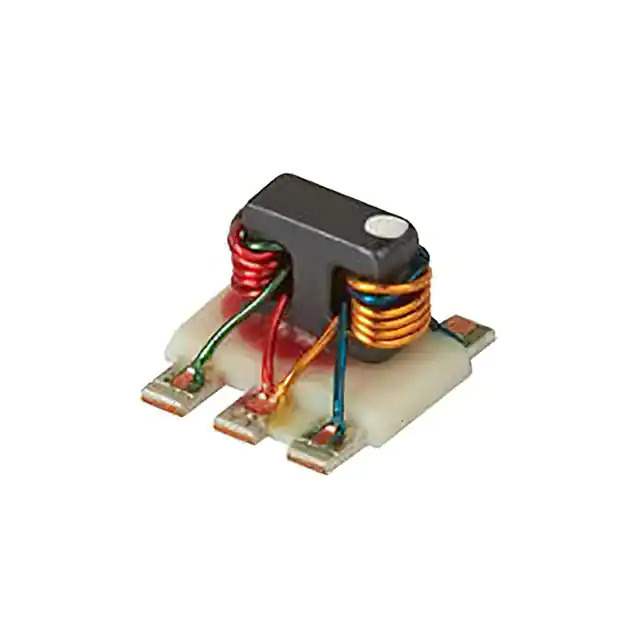

TCD-20-4+ Real Image
Same model may have multiple batches, images only for reference.

TCD-20-4+

Part No TCD-20-4+
Manufacturer Mini-Circuits
Catalog RF Directional Coupler
Description RF DIR COUPLER 5MHZ-1GHZ 6SMD
Datasheet
TCD-20-4+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Directional Coupler
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Coupler Type Standard
Frequency 5MHz ~ 1GHz
Coupling Factor 20dB
Applications Cellular
Power - Max 1W
Return Loss 37.54dB
Package / Case 6-SMD, Flat Leads
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 360025-TCD-20-4+
Ultra Librarian 3D Model Ultra Librarian TCD-20-4+ CAD Model

Description

The 360025-TCD-20-4+ is an RF Directional Coupler designed for use in cellular applications.

  • Frequency Range: 5MHz to 1GHz
  • Coupling Factor: 20dB
  • Maximum Power: 1W
  • Return Loss: 37.54dB
  • Package: 6-SMD, Flat Leads package
  • Manufacturer: Mini-Circuits' active product lineup
  • Standard Package: 2,000 pcs
