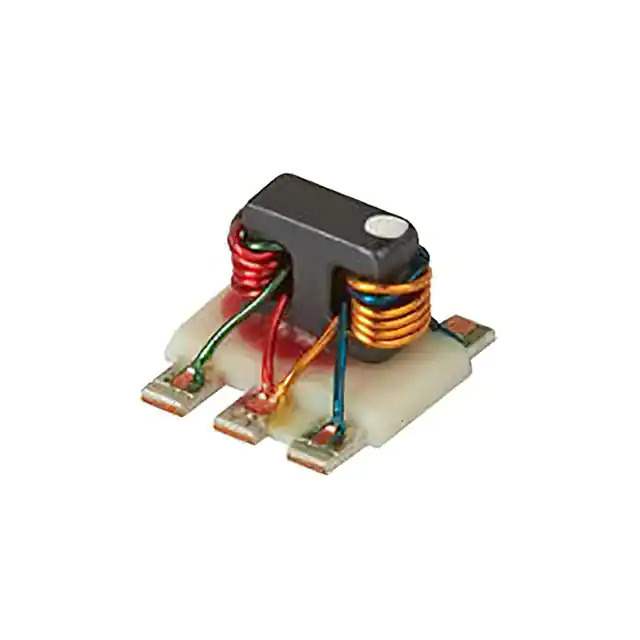

TCM1-1+ Real Image
Same model may have multiple batches, images only for reference.

TCM1-1+

Part No TCM1-1+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:1 CORE & WIRE TRANSFORMER, 1.5
Datasheet
TCM1-1+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 1.5MHz ~ 500MHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 4°
Insertion Loss (Max) 3dB
Return Loss (Min) 7.88dB
Package / Case 6-SMD, Flat Leads
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 839926-TCM1-1+
Ultra Librarian 3D Model Ultra Librarian TCM1-1+ CAD Model

Description

The 839926-TCM1-1+ is an RF and wireless balun component designed by Mini-Circuits.

  • Frequency Range: 1.5MHz to 500MHz
  • Impedance: 50/50 Ohm
  • Phase Difference: 4 degrees
  • Maximum Insertion Loss: 3dB
  • Minimum Return Loss: 7.88dB
  • Mounting Type: surface mountable
  • Package: 6-SMD, flat leads
  • Standard Package: 2,000 pcs
