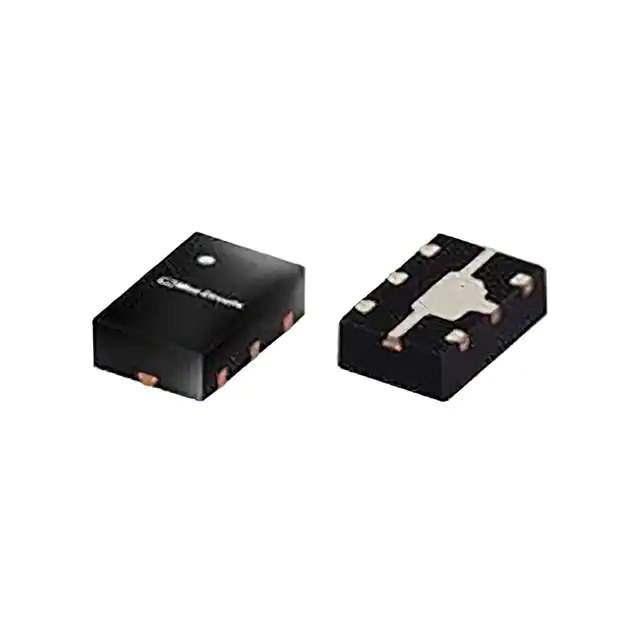

VSW2-33-10W+ Real Image
Same model may have multiple batches, images only for reference.

VSW2-33-10W+

Part No VSW2-33-10W+
Manufacturer Mini-Circuits
Catalog RF Switches
Description IC RF SWITCH SPDT 3GHZ
Datasheet
VSW2-33-10W+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
RF Type Cellular, ISM, PCS, LTE, TDS-CDMA, W-CDMA, WiMAX
Topology Reflective
Circuit SPDT
Frequency Range 50MHz ~ 3GHz
Isolation 18dB
Insertion Loss 0.6dB
Test Frequency 3GHz
IIP3 56dBm
Impedance 50Ohm
Voltage - Supply 3V ~ 5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 842088-VSW2-33-10W+
Ultra Librarian 3D Model Ultra Librarian VSW2-33-10W+ CAD Model

Description

The 842088-VSW2-33-10W+ is an RF switch designed for use in RF and wireless applications.

  • Circuit: SPDT (Single Pole Double Throw)
  • Topology: reflective
  • Frequency Range: 50MHz to 3GHz
  • Applications: cellular, ISM, PCS, LTE, TDS-CDMA, W-CDMA, and WiMAX
  • Impedance: 50Ohm
  • Insertion Loss: 0.6dB
  • Isolation: 18dB
  • Voltage Supply: 3V to 5V
  • Mounting Type: surface mountable
  • Package Type: 6-SMD, No Lead
  • Manufacturer: Mini-Circuits
  • Product Status: active
  • Package: tape and reel
  • Quantity per Package: 1,000 pieces
