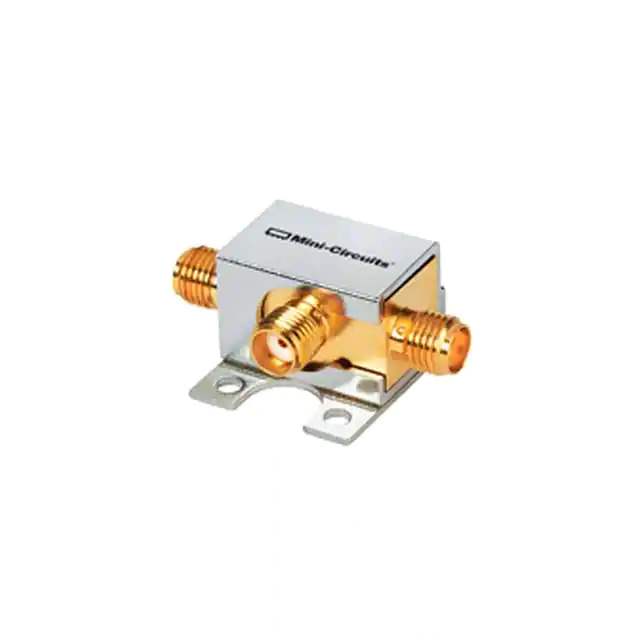

ZX05-153-S+ Real Image
Same model may have multiple batches, images only for reference.

ZX05-153-S+

Part No ZX05-153-S+
Manufacturer Mini-Circuits
Catalog RF Mixers
Description DBL BAL MIX / SMA / ROHS
Datasheet
ZX05-153-S+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Mixers
Mfr Mini-Circuits
Package Tray
Product Status Active
RF Type Radar, VSAT
Frequency 3.4GHz ~ 15GHz
Secondary Attributes Up/Down Converter
Mounting Type Chassis Mount
Package / Case Module, SMA Connectors
Standard Package 10 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 717102-ZX05-153-S+
Ultra Librarian 3D Model Ultra Librarian ZX05-153-S+ CAD Model

Description

The Mini-Circuits 717102-ZX05-153-S+ is an RF mixer suitable for applications such as radar and VSAT.

  • Frequency Range: 3.4GHz to 15GHz
  • Application: Designed for up/down converter applications.
  • Package: Tray
  • Standard Package: 10 pcs
  • Connectors: SMA
  • Mounting: Chassis mount
  • Product Lineup: Active product
