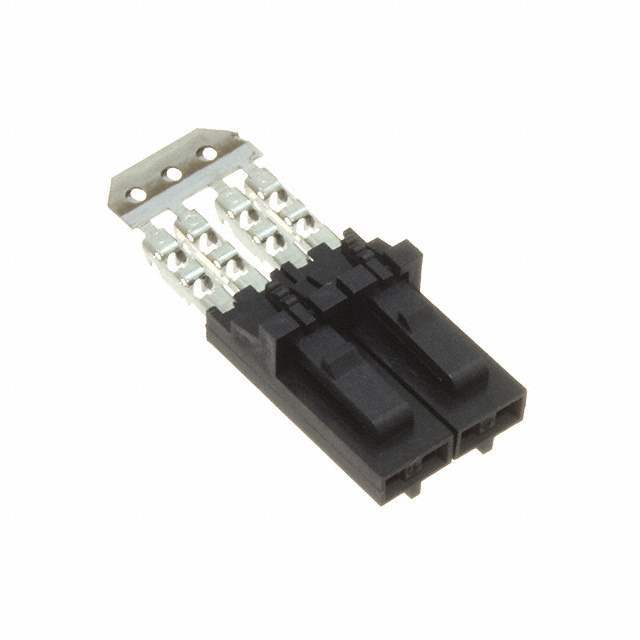

Same model may have multiple batches, images only for reference.
0014562022 Molex
Same model may have multiple batches, images only for reference.

0014562022

Part No 0014562022
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCP 2P IDC 24AWG GOLD 1=2PC
Datasheet
0014562022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Tube
Part Status Active
Connector Type Receptacle
Number of Positions 2
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Features Closed End
Ultra Librarian 3D Model Ultra Librarian 0014562022 CAD Model

Description

2.54mm Pitch SL Insulation Displacement Connector Assembly, Female, Single Row, Version G, Positive Lock, Wire Size 24 AWG, 0.38µm Gold (Au), 2 Circuits
