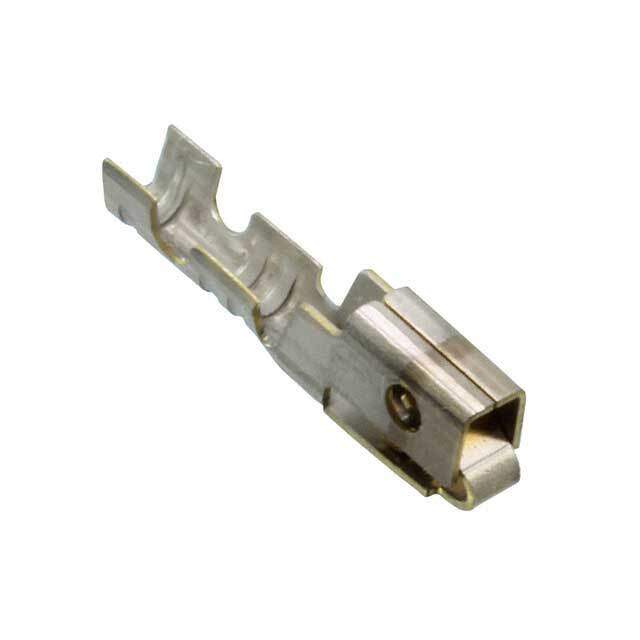

08-55-0124 Real Image
Same model may have multiple batches, images only for reference.

08-55-0124

Part No 08-55-0124
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description MOLEX 08-55-0124 / KK® High Pressure Crimp Terminal 7879, 22-30 AWG, Reel Selective Gold (Au)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0124
Connector Type Connector, Crimp, PCB, Signal
Contact Gender Female
Contact Material Brass
Contact Plating Gold
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 4 A
Depth 2 mm
Gender Female
Height 3.05 mm
Housing Color Black
Housing Material Polyester
Length 5.05 mm
Max Current Rating 2.5 A
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 2
Number of Rows 1
Orientation Straight
Packaging Cut Tape
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Crimp
Voltage Rating 250 V
Wire/Cable Gauge 22 AWG
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 30 AWG
Win Source Part Number 973922-08-55-0124
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 08-55-0124 CAD Model

Description

Molex 973922-08-55-0124 is a 2-contact, straight, unshielded, and SMD (SMT) mountable connector.

  • Number of Contacts: 2
  • Orientation: Straight
  • Shielding: Unshielded
  • Mounting Type: SMD (SMT)
  • Housing Material: Polyester
  • Contact Material: Brass
  • Contact Resistance: 10 mΩ
  • RoHS Compliant: Yes
  • Voltage Rating: 250 V
  • Current Rating: 4 A
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
  • Height: 3.05 mm
  • Depth: 2 mm
  • Length: 5.05 mm
  • Packaging: Cut Tape
  • Wire/Cable Gauge: 22 AWG
