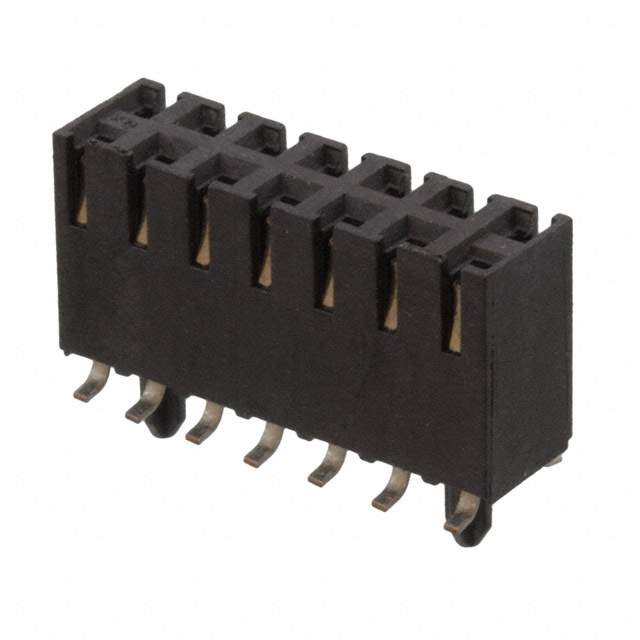

15-45-3514 Real Image
Same model may have multiple batches, images only for reference.

15-45-3514

Part No 15-45-3514
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 2.54mm Pitch C-Grid PCB Connector, Surface Mount, High Profile, Dual Row, Vertical, 14 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Female
Contact Material Bronze
Contact Plating Gold
Country of Origin US
Current Rating 2.5 A
ELV Compliant
Flammability Rating UL94 V-0
Gender Female
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Polymer
Material Bronze
Number of Circuits 14
Number of Contacts 14
Number of Positions 14
Number of Rows 2
Orientation Vertical
Pitch 2.54 mm
Plating Tin
RoHS Compliant
Row Spacing 2.54 mm
Termination SMD/SMT
Voltage Rating 250 V
Win Source Part Number 1013686-15-45-3514
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 15-45-3514 CAD Model

Description

The Molex 1013686-15-45-3514 is a 14-position, 2-row, vertical, SMD/SMT female connector.

  • Positions: 14
  • Rows: 2
  • Orientation: Vertical
  • Mounting Style: SMD/SMT
  • Pitch: 2.54 mm
  • Row Spacing: 2.54 mm
  • Contact Material: Bronze
  • Voltage Rating: 250 V
  • Current Rating: 2.5 A
  • Housing Material: Polymer
  • Contact Plating: Gold
  • RoHS Compliant: Yes
  • ELV Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Category: Circular Connector Housing
  • Halogen: Low Halogen
  • Popularity: Popular
  • Supply Status: Shortage
