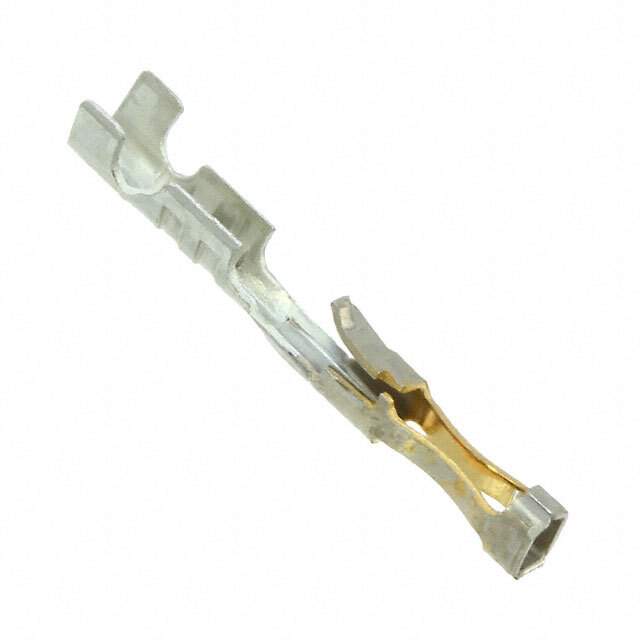

16-02-1109 Real Image
Same model may have multiple batches, images only for reference.

16-02-1109

Part No 16-02-1109
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description SL Crimp Terminal, Series 71851, Female, with 0.38µm Selective Gold (Au) Plated Contact, 24-30 AWG, Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, PCB, Signal, Socket
Contact Gender Female
Contact Material Brass, Bronze
Contact Plating Gold
Contact Resistance 15 mΩ
Country of Origin US
Current Rating 3 A
Depth 1.32 mm
ELV Compliant
Gender Female
Halogen Free Low Halogen
Height 2.18 mm
Lead Free Lead Free
Length 12.88 mm
Material Bronze
Max Current Rating 3 A
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 1
Orientation Straight
Packaging Bulk
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Shielding Unshielded
Termination Crimp
Voltage Rating 250 V
Wire/Cable Gauge 30 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 30 AWG
Win Source Part Number 1202047-16-02-1109
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 16-02-1109 CAD Model

Description

The supply and demand status of this component is limited. This electronic component is a PCB signal socket connector.

  • Termination: Crimp
  • Contact(s): Single
  • Voltage Rating: 250 V
  • Current Rating: 3 A
  • Contact Material: Brass and bronze
  • Contact Plating: Gold
  • Shielded: Unshielded
  • Orientation: Straight
  • Height: 2.18 mm
  • Depth: 1.32 mm
  • Lead-Free: Yes
  • RoHS Compliant: Yes
