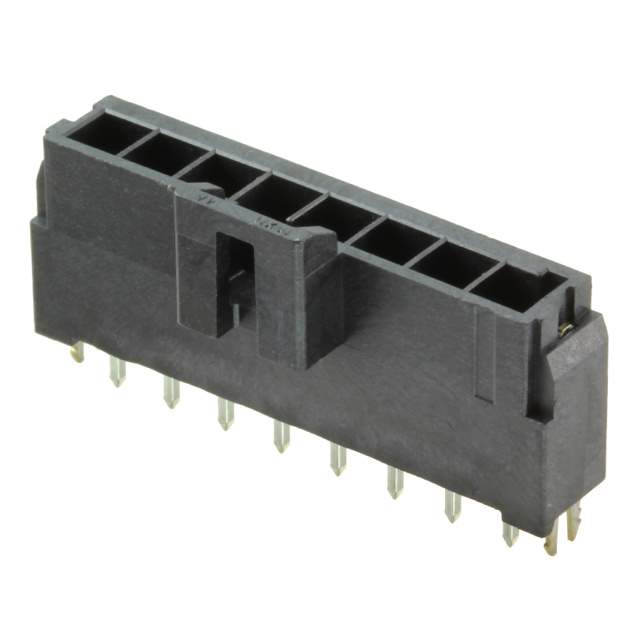

Same model may have multiple batches, images only for reference.

1722871108

Get a Quote

Part No	1722871108
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 3.5MM / Connector Header Through Hole 8 position 0.138" (3.50mm)
Datasheet	1722871108 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	Ultra-Fit 172287
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.138" (3.50mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.465" (11.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Solder Retention
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	400V
Mated Stacking Heights	26.99mm
Contact Finish Thickness - Post	60.0µin (1.52µm)
Applications	Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Base Product Number	172287
Standard Package	700
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1345595-1722871108
Ultra Librarian 3D Model	Ultra Librarian 1722871108 CAD Model

Alternative Products

Description

The Molex Ultra-Fit 172287 is a header-type connector with 8 positions and a solder retention feature.

Positions: 8
Solder Retention: true
Style: board to cable/wire
Pitch-Mating: 0.138” (3.50mm)
Insulation Material: liquid crystal polymer (LCP)
Insulation Color: black
Mounting Type: through-hole
Voltage Rating: 400V
Temperature Range: -40°C to 105°C
Suitable For: automotive, general purpose, industrial, lighting, medical, military, and telecommunications
ECCN: EAR99
ROHS3 Compliant: true
