Same model may have multiple batches, images only for reference.

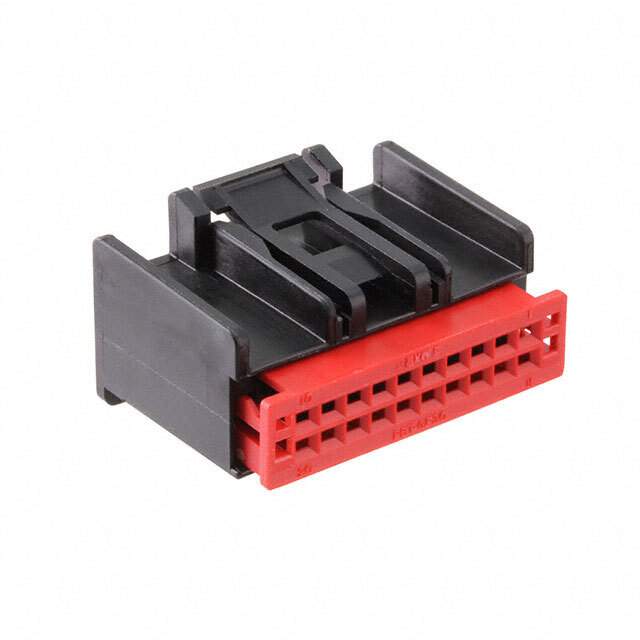

0307001208 Real Image
Same model may have multiple batches, images only for reference.

0307001208

Part No 0307001208
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT HSG 20POS 2.54MM / 20 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer Molex
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Holder
Color Black
Features Terminal Position Lock (TPA)
Note Contacts Not Included
Base Product Number 030700
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 030700-1208,307001-1208,307001208,30700-1208,WM13141,0307001208-ND
Standard Package 800
Win Source Part Number 1334122-0307001208
Ultra Librarian 3D Model Ultra Librarian 0307001208 CAD Model

Description

The Molex 1334122-0307001208 is a 20-position receptacle connector with a female socket contact type.

  • Mounting: Free-Hanging (In-Line)
  • Pitch: 0.100 inches (2.54mm)
  • Material: Black Plastic
  • Feature: Terminal Position Lock (TPA)
  • Contact Termination: Crimp
  • Contacts Included: No
  • Packaging: Bulk
  • Row Spacing: 0.100 inches (2.54mm)
  • RoHS3 Compliant: Yes
