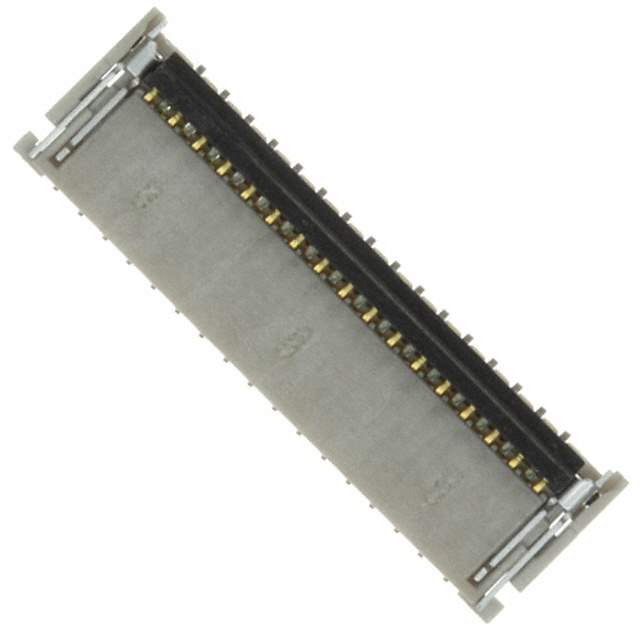

Same model may have multiple batches, images only for reference.

502250-3391

Name: 502250-3391
Brand: Molex, LLC
SKU: 420241
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	502250-3391
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 33POS 0.30MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex Connector Corporation
Packaging	Reel - TR
Status	Active
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	33
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.036" (0.90mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Notched or Tabbed
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Voltage Rating	50V
Temperature Range - Operating	-25°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.2A
Housing Color	Natural
Actuator Color	Black
Mating Cycles	10
Win Source Part Number	1005895-502250-3391
Popularity	Medium
Supply and Demand Status	Balance
Application Field	Used in Consumer Electronics, Communications & Networking, Medical, Computers & Computer Peripherals, Security
Ultra Librarian 3D Model	Ultra Librarian 502250-3391 CAD Model

Alternative Products

Description

The Molex Connector Corporation 1005895-502250-3391 is a 33-position, surface mount, right-angle FFC/FPC connector.

Positions: 33
Mounting: Surface Mount
Angle: Right-Angle
Applications: Consumer electronics, communications and networking, medical devices, computers, and computer peripherals, and security systems
Features: Flip lock and backlock
Materials: Liquid crystal polymer (LCP) and glass-filled polyphenylene sulfide (PPS)
Voltage Rating: 50V
Current Rating: 0.2A
Temperature Range: -25°C to 85°C
Status: Active
Popularity: Medium
