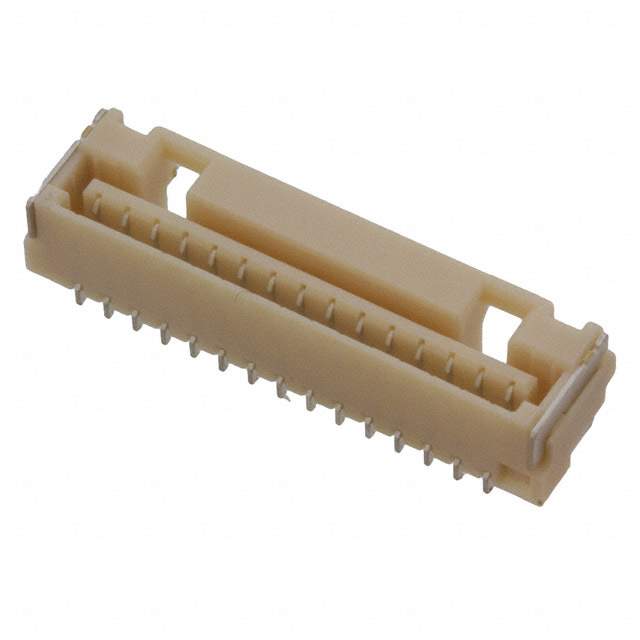

Part No 502386-1570
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 1.25mm Pitch CLIK-Mate WTB PCB Receptacle Single Row 90° Tin (Sn) Plating 15 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Forked, Receptacle
Contact Gender Female
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin MY
Current Rating 1 A
Depth 4.55 mm
Fastening Type Latch
Gender Receptacle
Glow Wire Compliant Non-compliant
Housing Color Natural
Housing Material Thermoplastic
Length 22.1 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 50 V
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -25 °C
Mount Surface Mount
Number of Circuits 15
Number of Contacts 15
Number of Positions 15
Number of Rows 1
Orientation Right Angle
Pitch 1.25 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating (AC) 50 V
Win Source Part Number 1008293-502386-1570
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 502386-1570 CAD Model

Description

This is a forked and receptacle connector manufactured by Molex LLC.

  • Win Source Part Number: 1008293-502386-1570
  • Positions: 15
  • Pitch: 1.25 mm
  • Row: 1
  • Termination: Solder
  • Fastening Type: Latch
  • Current Rating: 1 A
  • Number of Contacts: 15
  • Connector Gender: Receptacle
  • Length: 22.1 mm
  • Housing Material: Thermoplastic
  • Orientation: Right-Angled
  • Contact Resistance: 20 mΩ
  • RoHS Compliant: Yes
  • Supply and Demand Status: Shortage
