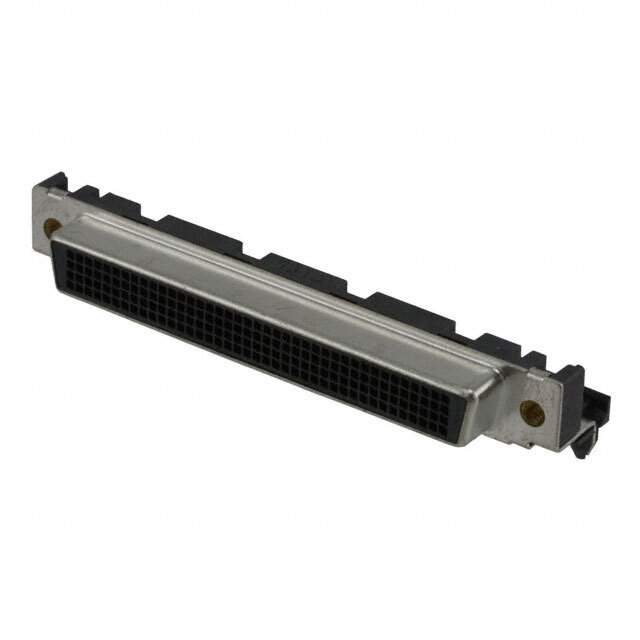

0051241040 Real Image
Same model may have multiple batches, images only for reference.

0051241040

Part No 0051241040
Manufacturer Molex, LLC
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-TYPE RCPT 160POS R/A SLDR / 160 Position D-Type, Board to Board, Matrix Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer Molex
Packaging Tube
Product Status Obsolete
Connector Style D-Type, Board to Board, Matrix
Connector Type Receptacle, Female Sockets
Number of Positions 160
Number of Rows 4
Mounting Through Hole, Right Angle
Shell Size, Connector Layout 0.050 Pitch x 0.050 Row to Row
Contact Type Signal
Flange Feature Housing/Shell (M3)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Features Board Lock, Shielded
Voltage Rating 40V
Color Black
Dielectric Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Material Beryllium Copper
Temperature Range - Operating -20°C ~ 80°C
Base Product Number 005124
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM4218,51-24-1040,71626-2000,51241040
Standard Package 320
Win Source Part Number 1333140-0051241040
Ultra Librarian 3D Model Ultra Librarian 0051241040 CAD Model

Description

The 1333140-0051241040 is a D-sub connector assembly manufactured by Molex.

  • Positions: 160
  • Packaging: Tube
  • Connector Type: Receptacle with Female Sockets
  • Current Rating: 1A
  • Voltage Rating: 40V
  • Mounting: Through Hole, Right Angle
  • Temperature Range: -20°C to 80°C
  • Status: Obsolete (Not for new designs)
