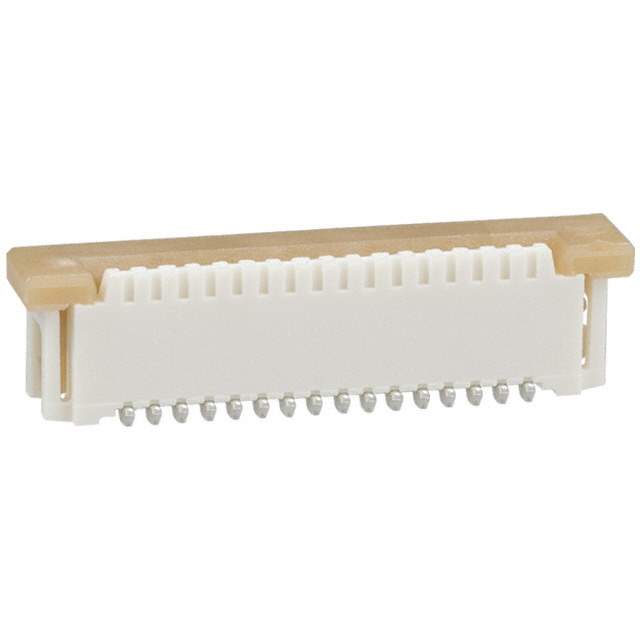

The Molex 52610-1671 is a 16-circuit Flat Flex Cable (FFC) connector designed to provide a secure and reliable connection between FFC/FPC cables and printed circuit boards (PCBs). Its compact size and robust construction make it a suitable choice for various applications requiring high-density signal transmission in limited spaces.

Applications

• Consumer Electronics: Commonly found in LCD and LED televisions, monitors, and other display devices for connecting the display panel to the main board.
• Mobile Devices: Used in smartphones and tablets for connecting touchscreens, cameras, and other internal components.
• Automotive Electronics: Integrated into automotive navigation systems, instrument clusters, and rear-view cameras for reliable data transmission.
• Industrial Automation: Employed in control panels, human-machine interfaces (HMIs), and industrial PCs for connecting various electronic modules.
• Medical Equipment: Utilized in portable medical devices, diagnostic equipment, and monitoring systems for critical signal connections.

Features

• 16 Circuits: Offers a 16-position interface for multiple signal connections.
• Compact Design: Allows for use in space-constrained applications due to its small form factor.
• Surface Mount Technology (SMT): Designed for automated assembly processes, which increases manufacturing efficiency.
• ZIF (Zero Insertion Force): Provides easy and damage-free cable insertion and removal, preventing cable damage.
• Durable Materials: Constructed from high-quality materials to ensure long-term reliability and resistance to environmental factors.

Benefits

• High-Density Connectivity: Maximizes the number of connections in a small area, optimizing board space usage.
• Secure and Reliable Connection: Ensures stable electrical performance, minimizing signal loss and interference.
• Simplified Assembly: SMT compatibility and ZIF design reduce assembly time and costs.
• Enhanced Durability: Withstands vibration, shock, and temperature fluctuations, extending product lifespan.
• Broad Application Range: Suitable for diverse industries and applications, providing a versatile connectivity solution.

Additional Details

The Molex 52610-1671 connector typically has a 1.00mm pitch, aligning with standard FFC/FPC cable specifications. It is rated for an operating temperature range of -25°C to +85°C. The housing is generally made of a high-temperature thermoplastic, and the contacts are made of copper alloy with tin plating, which enhances conductivity and prevents corrosion. The connector is also RoHS compliant, ensuring it meets environmental safety standards.
