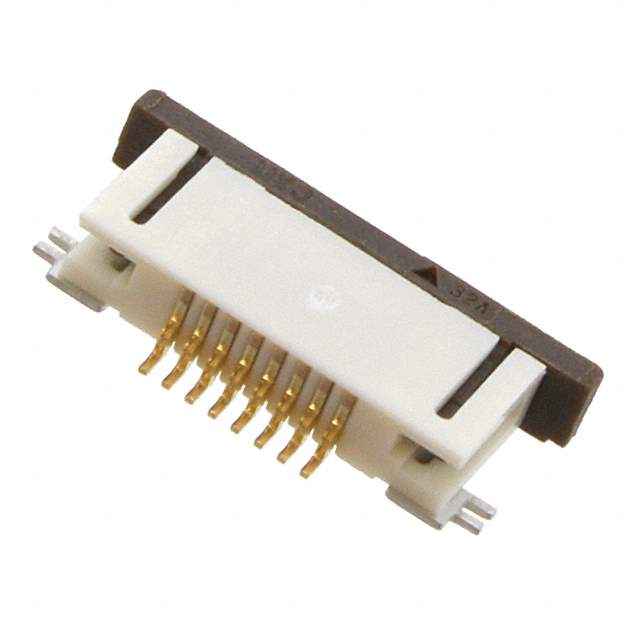

The Molex 52746-0871 is a Flat Flex Cable (FFC) or Flat Printed Circuit (FPC) connector designed to provide a secure and reliable electrical connection between a flexible cable and a printed circuit board (PCB). This connector is part of Molex's broad range of interconnect solutions, aimed at ensuring signal integrity and mechanical stability in diverse electronic applications.

Applications

• Smart home devices
• Wearable technology
• Portable medical equipment
• Drones
• Robotics
• Instrumentation and control systems

Features

• Compact design to maximize board space
• High-temperature thermoplastic housing for reflow soldering compatibility
• Secure locking mechanism for robust cable retention
• Gold-plated contacts to ensure optimal electrical conductivity
• RoHS compliance for environmental responsibility
• Halogen-free construction
• Designed for automated assembly processes

Benefits

• Provides consistent and dependable electrical performance
• Facilitates simple and efficient cable assembly
• Enables efficient utilization of PCB real estate
• Delivers long-term reliability in challenging environments
• Meets industry standards for environmental safety
• Minimizes the potential for accidental disconnections

Additional Details

The 52746-0871 connector is characterized by its specific pitch (distance between contacts) and circuit count (number of conductive paths), which determine its compatibility with different FFC/FPC cable types. The housing material is carefully selected to withstand the high temperatures involved in soldering processes. Key specifications also include current and voltage ratings, which must be considered to ensure safe and reliable operation within the intended application. Features such as polarization help prevent incorrect cable insertion, and strain relief features are often incorporated to minimize stress on the cable and connection points, improving overall durability.
