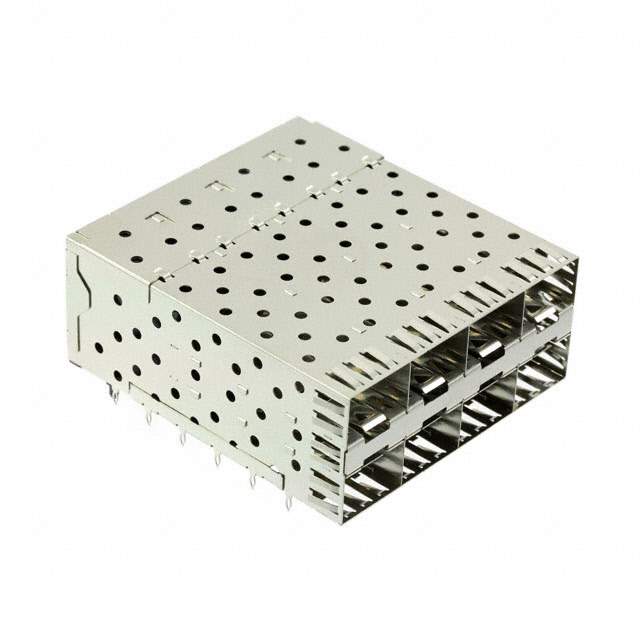

75454-5001 Real Image
Same model may have multiple batches, images only for reference.

75454-5001

Part No 75454-5001
Manufacturer Molex, LLC
Catalog Circular Connectors
Description Conn SFP F 160 POS 1.6mm Press Fit RA Thru-Hole 160 Terminal 8 Port Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Brass, Tin
Contact Plating Gold
Country of Origin US
Current Rating 500 mA
ELV Compliant
Flammability Rating UL94 V-0
Gender Female
Halogen Free Low Halogen
Housing Material Thermoplastic
Material Thermoplastic
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 160
Number of Contacts 160
Number of Positions 160
Number of Rows 2
Orientation Right Angle
Pitch 800 µm
Plating Tin
Radiation Hardening No
RoHS Compliant
Shielding Shielded
Termination Solder
Voltage Rating (AC) 120 V
Win Source Part Number 1011745-75454-5001
Categories Circular Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 75454-5001 CAD Model

Description

The 1011745-75454-5001 is a low-popularity circular connector suitable for use in applications such as aerospace and defense, automotive, and commercial vehicle.

  • Manufacturer: Molex
  • Popularity: Low
  • Applications: Aerospace and defense, automotive, and commercial vehicle
  • Color: Black
  • Orientation: Right-angle
  • Housing Material: Thermoplastic
  • Shielding: Shielded
  • Maximum Operating Temperature: 85°C
  • Minimum Operating Temperature: -40°C
  • RoHS: Compliant
  • ELV: Compliant
