Same model may have multiple batches, images only for reference.

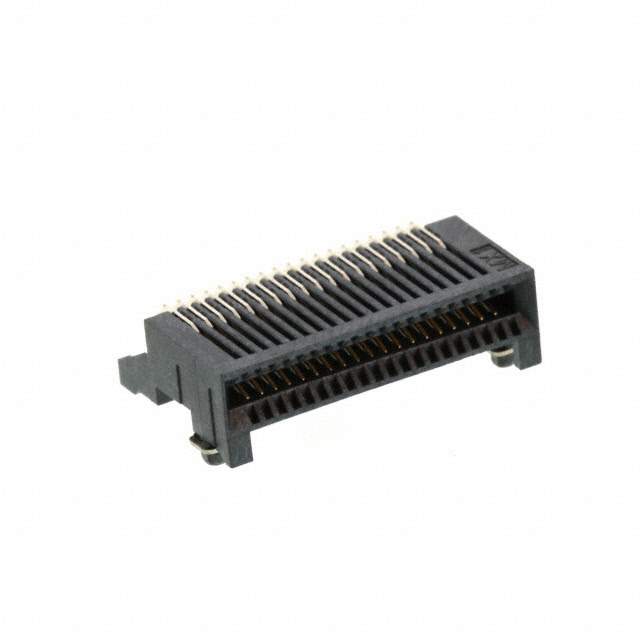

75586-0104 Real Image
Same model may have multiple batches, images only for reference.

75586-0104

Part No 75586-0104
Manufacturer Molex, LLC
Catalog Circular Connectors
Description Conn zQSFP+ RCP 38 POS Press Fit RA Thru-Hole 38 Terminal 4 Port Box/Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Mini-SAS, Receptacle
Contact Plating Gold
Country of Origin US
Depth 11.5 mm
Gender Female
Housing Color Black
Housing Material Thermoplastic
Length 18.2 mm
Maximum Operating Temperature 80 °C
Max Voltage Rating (AC) 30 V
Max Voltage Rating (DC) 30 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 38
Number of Contacts 38
Number of Ports 1
Number of Positions 38
Number of Positions Loaded 38
Number of Rows 2
Orientation Right Angle
Packaging Tape & Reel
Pitch 800 µm
Plating Tin
Radiation Hardening No
RoHS Compliant
Shielding No
Termination Solder
Win Source Part Number 1040741-75586-0104
Categories Circular Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 75586-0104 CAD Model

Description

The Molex Mini-SAS Connector is an electronic component that is used to connect Mini-SAS receptacles.

  • Component: Molex Mini-SAS Connector
  • Model: 1040741-75586-0104
  • Package: Tape and Reel
  • Positions: 38
  • Pitch: 800 µm
  • Color: Black
  • Gender: Female
  • Rows: Two
  • Termination: Solder
  • Contact Material: Gold
  • Data Rate: 25 Gbps
  • Length: 18.2 mm
  • Housing Material: Thermoplastic
  • Contacts: 38
  • Circuits: 38
  • Orientation: Right-Angle
  • Contact Plating: Gold
  • Housing Color: Black
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 80 °C
  • Mounting: Surface
  • Voltage Rating: 30 V
