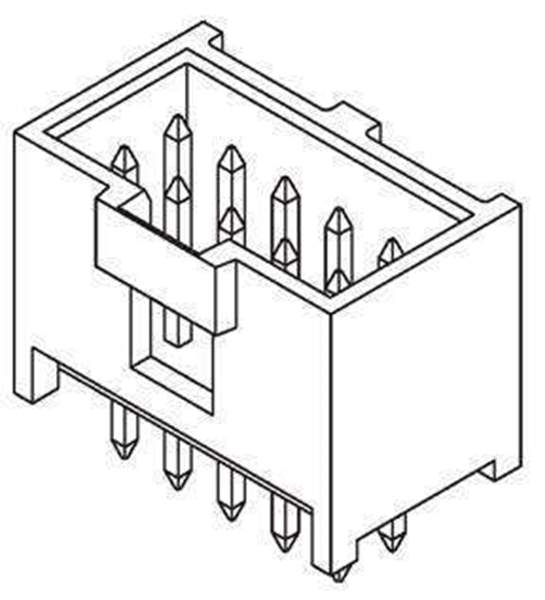

90130-1206 Molex
Same model may have multiple batches, images only for reference.

90130-1206

Part No 90130-1206
Manufacturer Molex, LLC
Catalog Headers & Wire Housings
Description Headers & Wire Housings 2.54MM CGRIDIII HDR 6P V DR SHRD AU-E
Datasheet
90130-1206 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Category Headers & Wire Housings
Product Headers
Type Shrouded
Number of Positions 6 Position
Pitch 2.54 mm (0.1 in)
Number of Rows 2 Row
Row Spacing 2.54 mm (0.1 in)
Mounting Style Through Hole
Termination Style Solder Pin
Mounting Angle Straight
Ultra Librarian 3D Model Ultra Librarian 90130-1206 CAD Model

Description

C-Grid III Header, Dual Row, Vertical, Shrouded, Fully Loaded, 6 Circuits, Black, 0.38µm Gold (Au) Selective Plating
