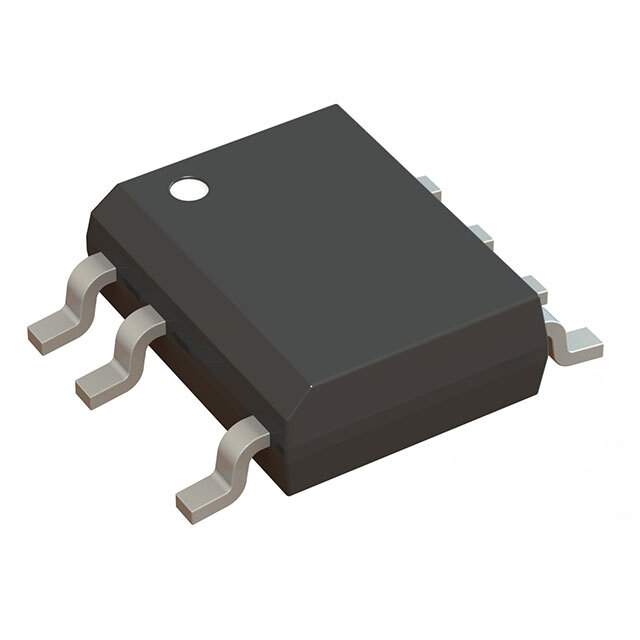

HF01B04DS-LF-Z Real Image
Same model may have multiple batches, images only for reference.

HF01B04DS-LF-Z

Part No HF01B04DS-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC REG CTRLR FLYBK PWM 8SOIC / Off Line High VoltageQuasi Resonant Regulator
Datasheet
HF01B04DS-LF-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Monolithic Power Systems Inc.
Packaging Reel package
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Voltage - Start Up 11.8V
Supply Voltage 8 V ~ 20 V
Frequency - Switching Up to 150kHz
Power (Watts) 23W
Fault Protection Over Load, Over Temperature, Over Voltage
Operating Temperature Range -40°C ~ 85°C (TA)
Package 8-SOIC (0.154", 3.90mm Width) 7 leads
Manufacturer Package 8-SOIC-7B
Mounting SMD
Win Source Part Number 775978-HF01B04DS-LF-Z
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2,500
Family Name HF01B04DS
ECCN EAR99
Country of Origin China
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian HF01B04DS-LF-Z CAD Model

Description

The HF01B04DS-LF-Z is a flyback converter IC manufactured by Monolithic Power Systems Inc..

  • Converter Type: Isolated
  • Features: Internal Switch, Overvoltage, Overload, Over-temperature Protection
  • Switching Frequency: 150kHz
  • Power: 23W
  • Voltage Breakdown: 700V
  • Package: 8-SOIC-7B
