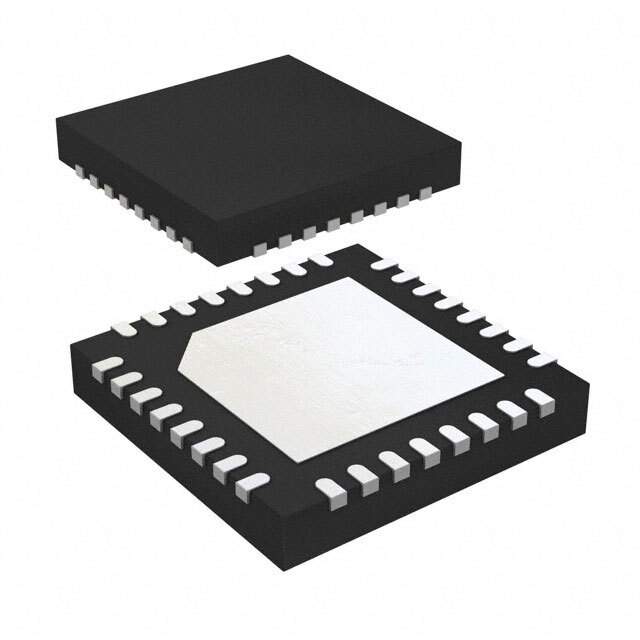

MP2040DU-LF-Z Real Image
Same model may have multiple batches, images only for reference.

MP2040DU-LF-Z

Part No MP2040DU-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR POS ADJ 3A 32QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Monolithic Power Systems Inc.
Packaging Reel
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 5.5V
Voltage - Output (Min/Fixed) 0.9V
Maximum Output Voltage 3.3V
Maximum Dropout Voltage 0.15V at 3A (Typ)
Current - Output 3A
Current - Quiescent (Iq) 3.5mA
PSRR 40dB (100kHz)
Control Features Enable, Power Good
Protection Features Over Current, Over Temperature, Soft Start
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Manufacturer Pack Quantity 5,000
MSL Level 2 (1 Year)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804097-MP2040DU-LF-Z
Ultra Librarian 3D Model Ultra Librarian MP2040DU-LF-Z CAD Model

Description

The Monolithic Power Systems Inc. Adjustable Positive Output DC DC Regulator Integrated Circuit is a high-quality power management solution for a wide range of electronic devices.

  • Maximum Input Voltage: 5.5V
  • Output Current: 3A
  • Package: 32-QFN (5x5)
  • Temperature Range: -40°C to 125°C
  • Maximum Output Voltage: 3.3V
  • Protection: over current, over temperature, soft start
  • Supply and Demand Status: balance
  • Manufacturer Pack Quantity: 5,000
