Same model may have multiple batches, images only for reference.

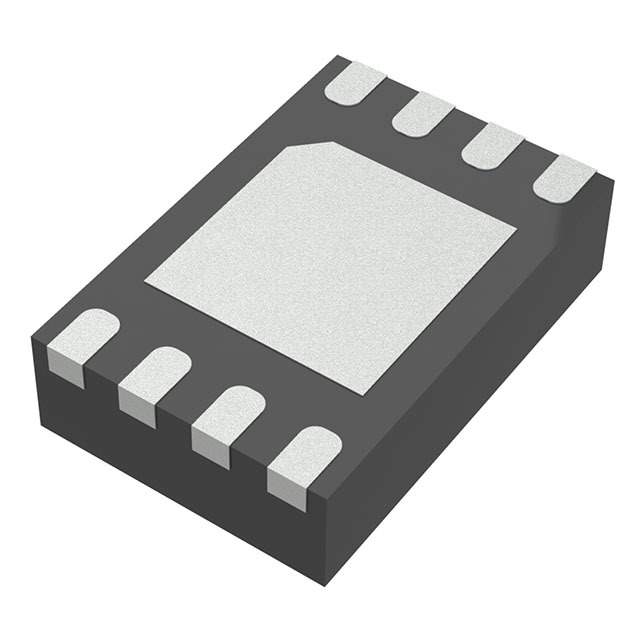

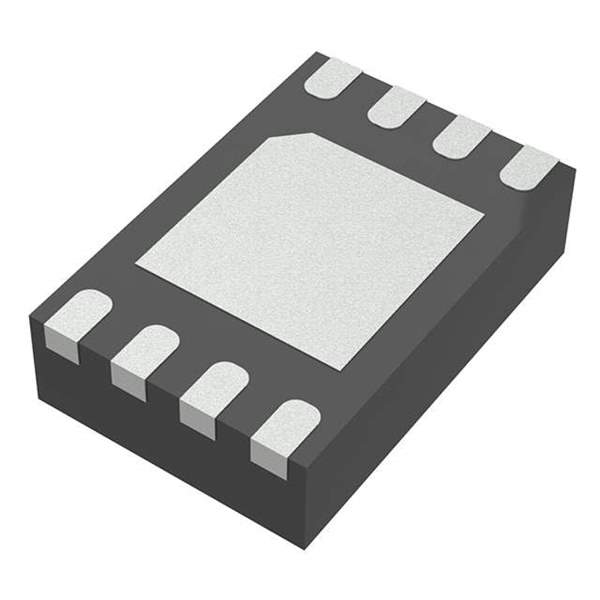

MP3304ADD-LF-P Real Image
Same model may have multiple batches, images only for reference.

MP3304ADD-LF-P

Part No MP3304ADD-LF-P
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - LED Drivers
Description IC LED DRIVER
Datasheet
MP3304ADD-LF-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 1.33A (Switch) 8-QFN (2x3)
Manufacturer Monolithic Power Systems Inc.
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 8-TFDFN Exposed Pad
Case / Package 8-QFN (2x3)
Family Name MP3304
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 927728-MP3304ADD-LF-P
Ultra Librarian 3D Model Ultra Librarian MP3304ADD-LF-P CAD Model

Description

The Monolithic Power Systems Inc. 927728-MP3304ADD-LF-P is an LED driver IC with a step-up (boost) PWM dimming feature.

  • Output: 1 output DC DC regulator
  • Dimming: PWM dimming
  • Switch Current: 1.33A
  • Mounting: Surface mount
  • Package: Reel - TR
  • Package: 8-TFDFN exposed pad
  • Case/Package: 8-QFN (2x3)
  • Operating Temperature: -40°C ~ 85°C (TA)
  • New Design: Not for new designs
  • ECCN: EAR99
