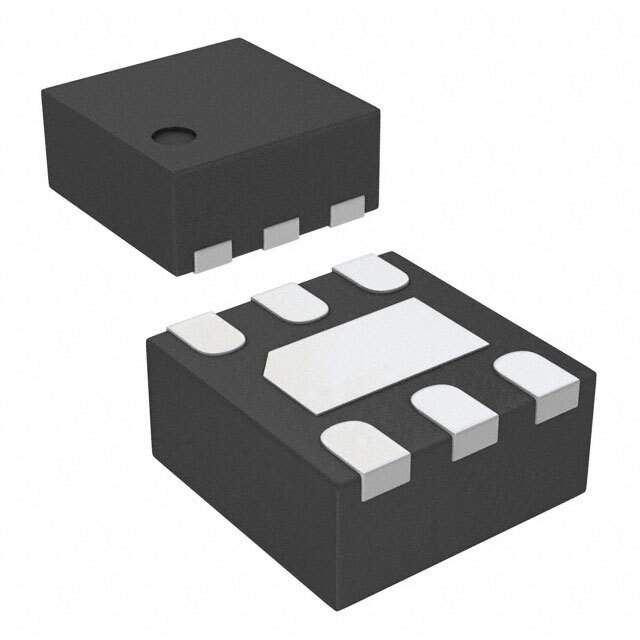

MPQ2013AGG-33-AEC1-P Real Image
Same model may have multiple batches, images only for reference.

MPQ2013AGG-33-AEC1-P

Part No MPQ2013AGG-33-AEC1-P
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 3.3V 150MA 6QFN  /  Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 6-QFN (2x2)
Datasheet
MPQ2013AGG-33-AEC1-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Monolithic Power Systems Inc.
Package Tape & Reel
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 40V
Voltage - Output (Min/Fixed) 3.3V
Voltage Dropout (Max) 1.1V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 50 µA
PSRR 58dB ~ 41dB (100Hz ~ 1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 6-VDFN Exposed Pad
Supplier Device Package 6-QFN (2x2)
Base Product Number MPQ2013
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1589-MPQ2013AGG-33-AEC1-PTR,MPQ2013AGG-33-AEC1-P-ND,1589-MPQ2013AGG-33-AEC1-PCT,1589-MPQ2013AGG-33-AEC1-PDKR
Standard Package 500
Win Source Part Number 1188601-MPQ2013AGG-33-AEC1-P
Ultra Librarian 3D Model Ultra Librarian MPQ2013AGG-33-AEC1-P CAD Model

Description

The MPQ2013AGG-33-AEC1-P is a linear voltage regulator integrated circuit designed by Monolithic Power Systems Inc.

  • Current Output: 150mA
  • Voltage Input Range: Up to 40V
  • Mounting: Surface Mount Device (SMD)
  • Package: 6-VDFN Exposed Pad
  • Temperature Range: -40°C ~ 125°C (TJ)
  • Voltage Output: 3.3V
