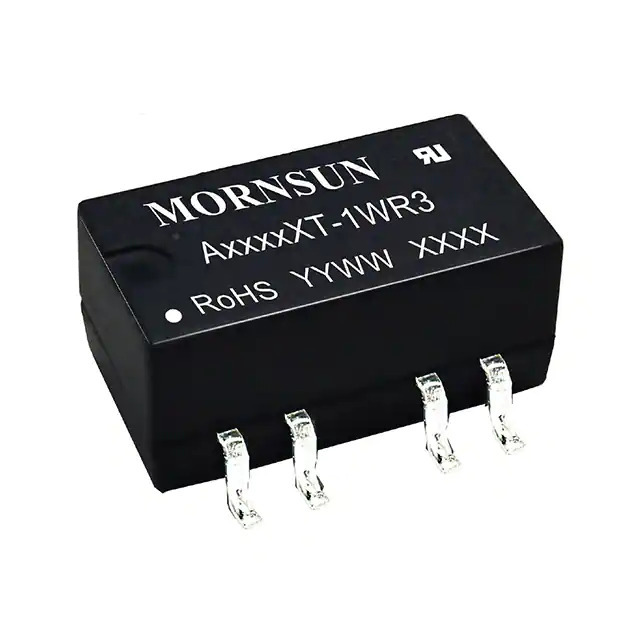

A1212XT-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

A1212XT-1WR3

Part No A1212XT-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 10.8V - 13.2V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series A_XT-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 83%
Mounting Type Surface Mount
Package / Case 10-SMD Module, 6 Leads
Size / Dimension 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372767-A1212XT-1WR3
Ultra Librarian 3D Model Ultra Librarian A1212XT-1WR3 CAD Model

Description

The A1212XT-1WR3 is a 1W isolated module DC-DC converter from Mornsun America, LLC.

  • Application: Power Supplies, Board Mount
  • Temperature Range: -40°C to 105°C (with derating)
  • Maximum Input Voltage: 13.2V
  • Minimum Input Voltage: 10.8V
  • Outputs: 12V and -12V
  • Efficiency: 83%
  • Voltage Isolation: 1.5 kV
  • Package: 10-SMD Module
  • Leads: 6
  • Mounting: Surface Mount
  • Application: ITE (Commercial)
  • Approvals: CB, CE, cURus, UL
