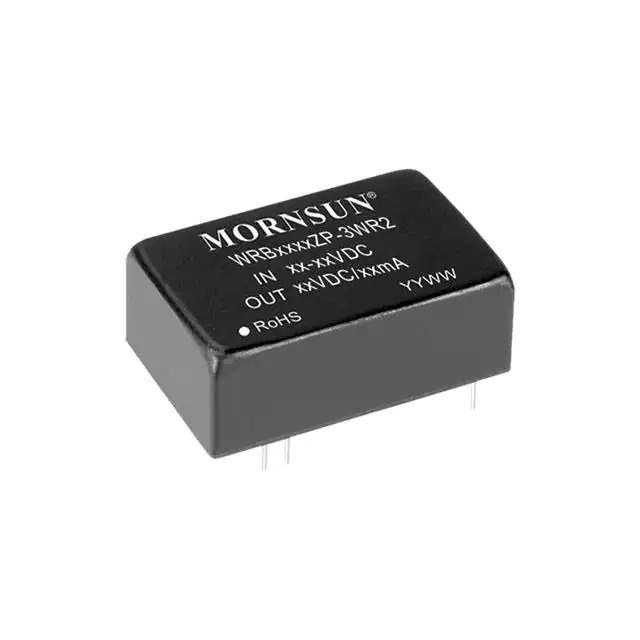

WRB0505ZP-3WR2 Real Image
Same model may have multiple batches, images only for reference.

WRB0505ZP-3WR2

Part No WRB0505ZP-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series WRB_ZP-3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C
Efficiency 74%
Mounting Type Through Hole
Package / Case 24-DIP Module, 7 Leads
Size / Dimension 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Approval Agency CE
Standard Number 60950-1; 62368-1
Standard Package 15 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1012142-WRB0505ZP-3WR2
Ultra Librarian 3D Model Ultra Librarian WRB0505ZP-3WR2 CAD Model

Description

The WRB_ZP-3WR2 (3W) is an isolated module DC-DC converter designed for power supplies in the category of power supplies - board mount - DC DC converters.

  • Remote On/Off: Yes
  • Package: Tube
  • Size / Dimension: 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
  • Applications: ITE (Commercial)
  • Standard Package: 15 pcs
  • Power (Watts): 3W
  • Number of Outputs: 1
  • Output Current (Max): 600mA
  • Voltage - Input: 4.5V ~ 9V
  • Voltage - Output 1: 5V
  • Efficiency: 74%
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C ~ 85°C
  • Approvals: CE
  • Standard Number: 60950-1
