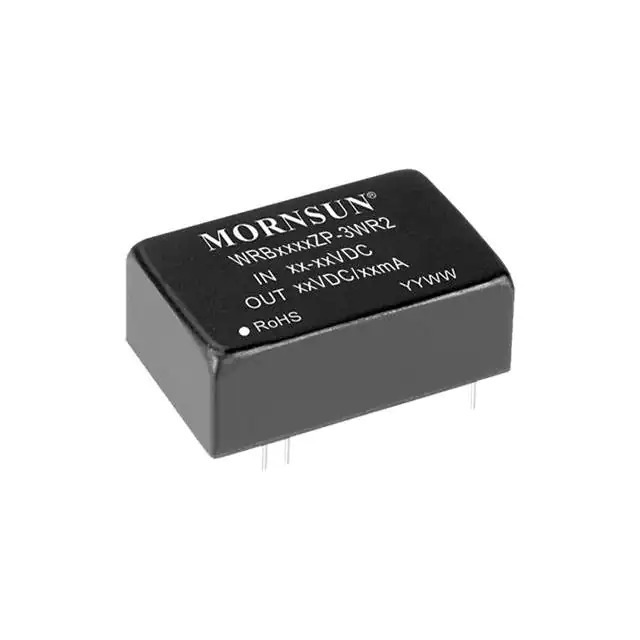

WRB2415ZP-3WR2 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

WRB2415ZP-3WR2

Part No WRB2415ZP-3WR2
Catalog Power Supplies Board Mount DCDC Converters
Description ISOLATED MODULE DC DC CONVERTER
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series WRB_ZP-3WR2 (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 200mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 85°C
Efficiency 86%
Mounting Type Through Hole
Package / Case 24-DIP Module, 7 Leads
Size / Dimension 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
Supplier Device Package -
Control Features -
Approval Agency CE, UL
Standard Number 60950-1; 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1373084-WRB2415ZP-3WR2
Ultra Librarian 3D Model Ultra Librarian WRB2415ZP-3WR2 CAD Model

Description

The WRB2415ZP-3WR2 is a 3W isolated module DC-DC converter developed by Mornsun America, LLC.

  • Type: Board Mount Converter, DC-DC Converters
  • Operating Temperature: -40°C to 85°C
  • Output Current: 200mA (Max)
  • Power: 3W
  • Input Voltage: 18V to 36V
  • Voltage Isolation: 1.5kV
  • Efficiency: 86%
  • Approvals: CE, UL
  • Package: 24-DIP Module
  • Leads: 7
