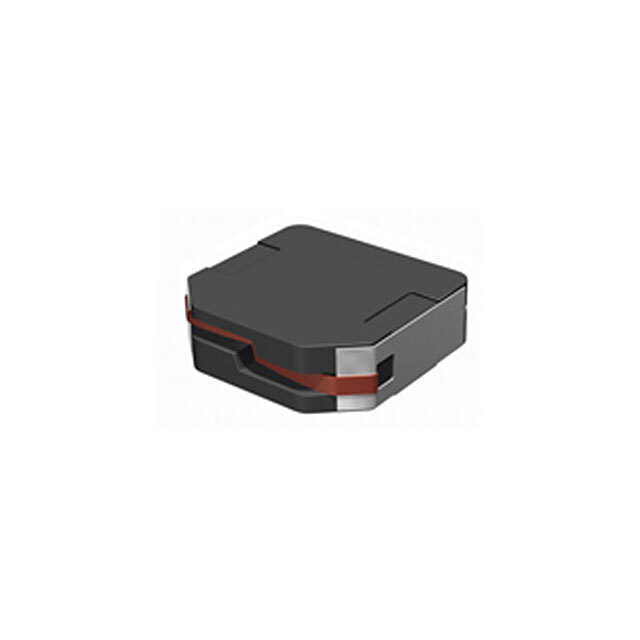

1231AS-H-2R2M=P3

Part No 1231AS-H-2R2M=P3
Manufacturer Murata Electronics North America
Catalog HOT - SALES and EOL Components
Description Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Ferrite 2.55A 0.048Ohm DCR 1514 T/R / FIXED IND
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 2.55A
Current - Saturation 1.9A
Shielding Shielded
DC Resistance (DCR) 48mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.146" L x 0.154" W (3.70mm x 3.90mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 148720-1231AS-H-2R2M=P3
Popularity Low
Supply and Demand Status Balance
Family Name DEM3518C
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Vietnam
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 1231AS-H-2R2M=P3 CAD Model

Description

The 1231AS-H-2R2M=P3 is a highly reliable electronic component renowned for its exceptional performance in power management and signal processing applications. Designed with precision, this component ensures optimal efficiency and durability in various projects.

Applications

  • Power management systems
  • Signal processing units
  • Telecommunications equipment
  • Consumer electronics projects

Features and Benefits

  • High Efficiency: Optimizes power usage for long-lasting performance.
  • Durability: Offers robust construction for extended operational life.
  • Compact Design: Facilitates easy integration into various electronic applications.

Additional Details

This component is ideal for designers looking to enhance the energy efficiency of their devices without compromising on space or reliability. Perfect for both professional and educational projects, its quality and performance set it apart in the market.
