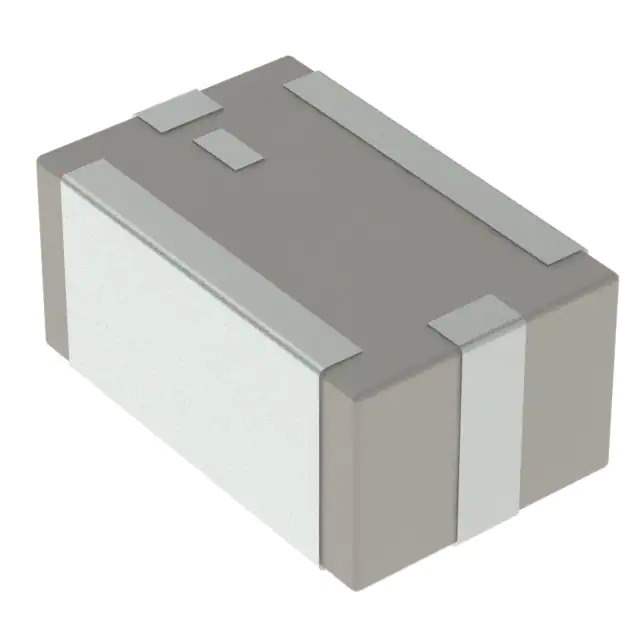

The LFB215G37SG8A180 is a ceramic filter from Murata Electronics North America's SG series.

• Package: It comes in a tape & reel package
• Size: 0.079" L x 0.049" W (2.00mm x 1.25mm).
• Insertion loss: This ceramic filter has an insertion loss of 1.8dB
• Bandwidth: 475 MHz.
• Type: It is a band pass filter
• Center frequency: 5.37GHz.
• Height: The LFB215G37SG8A180 has a maximum height of 0.041" (1.05mm)
• Package: 0805 (2012 Metric) package with 4 PC pads.
• Application: This filter is commonly used in electronic circuits to suppress unwanted frequencies and enhance signal quality.
• Mounting: It is suitable for surface mount applications
• Operating temperature range: -55°C to 125°C.
• Status: The LFB215G37SG8A180 is an active product and comes in a standard package of 4,000 pcs.
