Same model may have multiple batches, images only for reference.

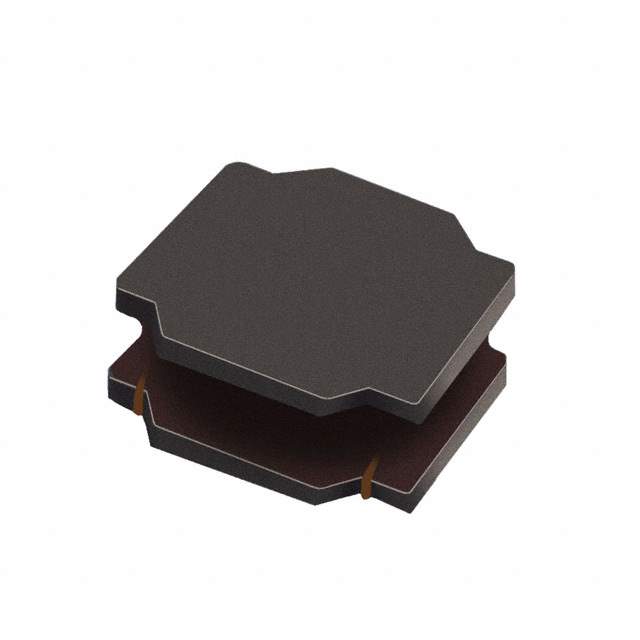

LQH88PN100M38L Real Image
Same model may have multiple batches, images only for reference.

LQH88PN100M38L

Part No LQH88PN100M38L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Chip Inductor (Chip Coil) Power Inductor (Wire Wound Type) LQH88P Series
Datasheet
LQH88PN100M38L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQH88
Packaging Reel - TR
Part Status Obsolete(EOL)
Type Wirewound
Inductance 10μH
Tolerance ±20%
Current Rating 3.15A
Current - Saturation 3.6A
Shielding Shielded
DC Resistance (DCR) 29 mOhm
Frequency - Self Resonant 18MHz
Operating Temperature Range -40°C ~ 85°C
Test Frequency 100kHz
Mounting SMD
Package 3131 (8080 Metric)
Manufacturer Package 3131 (8080 Metric)
Size 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Maximum) 0.150" (3.80mm)
Win Source Part Number 1204397-LQH88PN100M38L
Manufacturer Homepage www.murata.com
Popularity Medium
Supply and Demand Status Limited
Family Name LQH88PN_38
Introduction Date December 17, 2009
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian LQH88PN100M38L CAD Model

Description

The 1204397-LQH88PN100M38L is an obsolete (EOL) product that belongs to the LQH88 series from Murata Electronics North America.

  • Inductor Type: wirewound
  • Design: shielded
  • Current Rating: 3.15A
  • Package Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Tolerance: ±20%
  • Type: SMD
