Same model may have multiple batches, images only for reference.

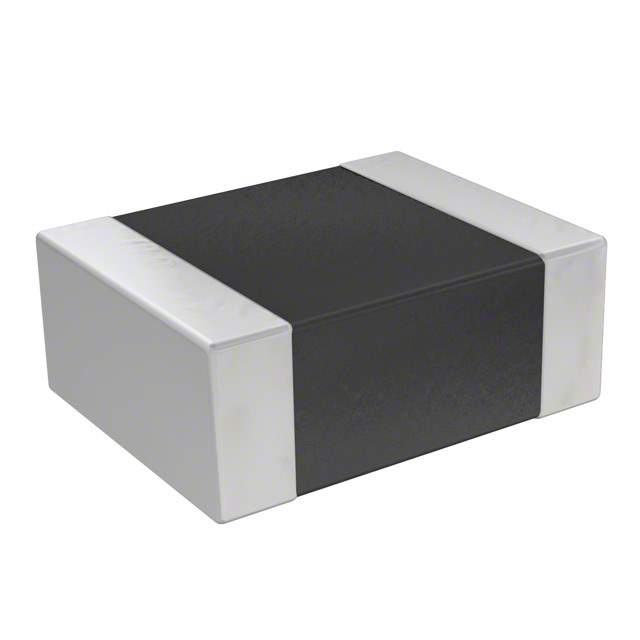

LQM2HPNR47MGHL Real Image
Same model may have multiple batches, images only for reference.

LQM2HPNR47MGHL

Part No LQM2HPNR47MGHL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 470NH 2.6A 50 MOHM SMD / 470 nH Shielded Multilayer Inductor 2.6 A 50mOhm Max 1008 (2520 Metric)
Datasheet
LQM2HPNR47MGHL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series LQM2
Package Tape & Reel (TR)
Type Multilayer
Material - Core Ferrite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 4.5A
Shielding Shielded
DC Resistance (DCR) 50mOhm Max
Frequency - Self Resonant 80MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number LQM2HPN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 3,000
Win Source Part Number 975331-LQM2HPNR47MGHL
Ultra Librarian 3D Model Ultra Librarian LQM2HPNR47MGHL CAD Model

Description

The LQM2 series of inductors from Murata Electronics are multilayer inductors that come in a tape and reel package.

  • Series: LQM2
  • Manufacturer: Murata Electronics
  • Type: Multilayer Inductors
  • Packaging: Tape and Reel
  • Shielding: Shielded
  • Inductance: 470 nH
  • Seated Height (Max): 0.039 inches (1.00mm)
  • Current Rating: 2.6 A
  • DC Resistance: 50 mOhm Max
  • Material: Ferrite
  • Tolerance: ±20%
  • Frequency Self-Resonant: 80 MHz
  • Operating Temperature Range: -40°C to 85°C
  • Applications: Smartphones, tablets, and laptops.
