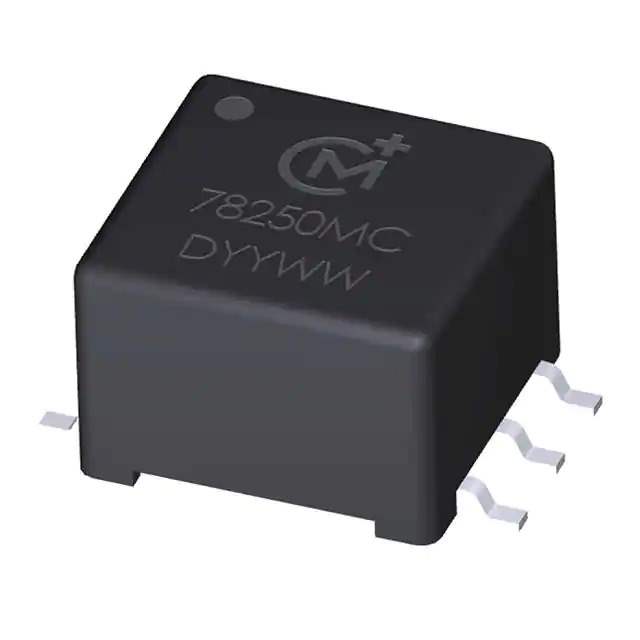

78250MVC Real Image
Same model may have multiple batches, images only for reference.

78250MVC

Part No 78250MVC
Manufacturer Murata Power Solutions Inc.
Catalog Specialty Transformers
Description XFRMR MAX250 4KVDC 2.5 MH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Specialty Transformers
Mfr Murata Power Solutions Inc.
Series 78250
Package Tube
Product Status Not For New Designs
Inductance 2 mH
For Use With/Related Products MAX250, MAX251
Mounting Type Surface Mount
Size / Dimension 0.354" L x 0.375" W (9.00mm x 9.52mm)
Height - Seated (Max) 0.260" (6.60mm)
Weight 0.04 oz (1.14 g)
Base Product Number 78250
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 858219-78250MVC
Ultra Librarian 3D Model Ultra Librarian 78250MVC CAD Model

Description

The 78250MVC is a specialty transformer designed for use with MAX250 and MAX251 electronic components.

  • Series: 78250
  • Package: Tube
  • Size: 0.354" L x 0.375" W (9.00mm x 9.52mm)
  • Inductance: 2 mH
  • Seated Height: 0.260" (6.60mm)
  • Mounting: Surface Mounted
  • Manufacturer: Murata Power Solutions Inc.
  • Recommendation: Not Recommended for New Designs
