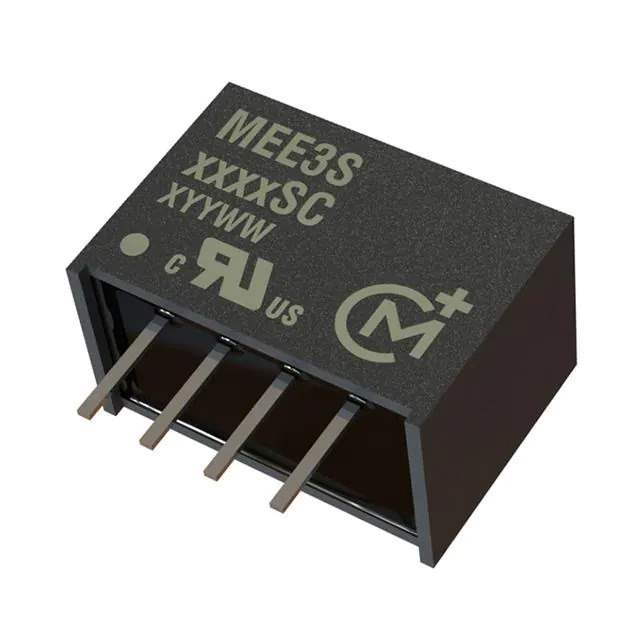

Same model may have multiple batches, images only for reference.

MEE3S0515SC

Name: MEE3S0515SC
Brand: Murata Power Solutions Inc.
SKU: 847600
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	MEE3S0515SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 3W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	MEE3 (3W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	15V
Current - Output (Max)	200mA
Power (Watts)	3 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	4-SIP Module
Size / Dimension	0.56" L x 0.32" W x 0.40" H (14.2mm x 8.2mm x 10.2mm)
Base Product Number	MEE3S05
Standard Package	35 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847600-MEE3S0515SC
Ultra Librarian 3D Model	Ultra Librarian MEE3S0515SC CAD Model

Alternative Products

Description

The MEE3S0515SC is a power supply module designed for board mount applications from Murata Power Solutions Inc.

Series: MEE3 (3W)
Type: Isolated Module
Package: Tube
Dimensions: 0.56" L x 0.32" W x 0.40" H (14.2mm x 8.2mm x 10.2mm)
Application: ITE (Commercial)
Standard Package: 35 pieces
Power Rating: 3 watts
Number of Outputs: Single
Maximum Output Current: 200mA
Input Voltage: 4.5V to 5.5V
Output Voltage: 15V
Efficiency: 88%
Mounting Type: Through Hole
Package / Case: 4-SIP
Operating Temperature: -40°C to 85°C
Product Status: Active
