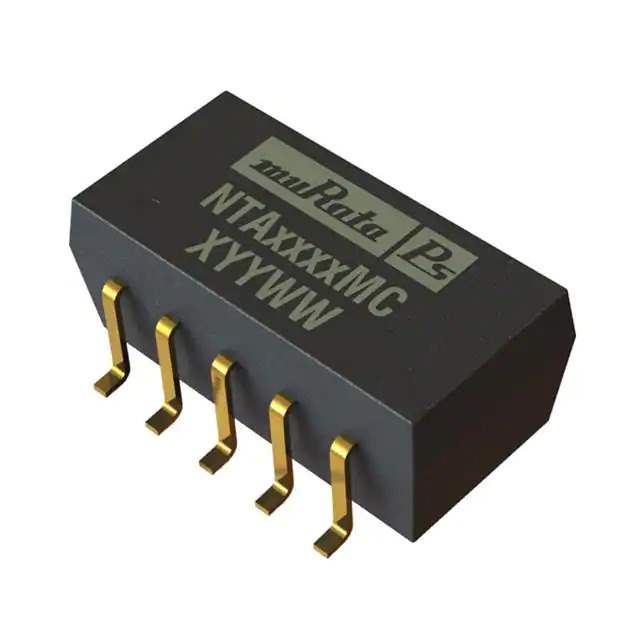

Same model may have multiple batches, images only for reference.

NTA0512MC

Name: NTA0512MC
Brand: Murata Power Solutions Inc.
SKU: 649614
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	NTA0512MC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NTA (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	42mA, 42mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	77%
Mounting Type	Surface Mount
Package / Case	18-SMD Module, 10 Leads
Size / Dimension	0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
Base Product Number	NTA05
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649614-NTA0512MC
Ultra Librarian 3D Model	Ultra Librarian NTA0512MC CAD Model

Alternative Products

Description

The NTA0512MC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

Category: power supplies in board mount applications
Size: 0.60" L x 0.30" W x 0.26" H
Outputs: two outputs
Maximum output current: 42mA each
Input voltage range: 4.5V to 5.5V
Output voltages: 12V and -12V
Efficiency: 77%
Mounting: surface mountable
Package: 18-SMD module with 10 leads
Operating temperature range: -40°C to 85°C
Status: active product
