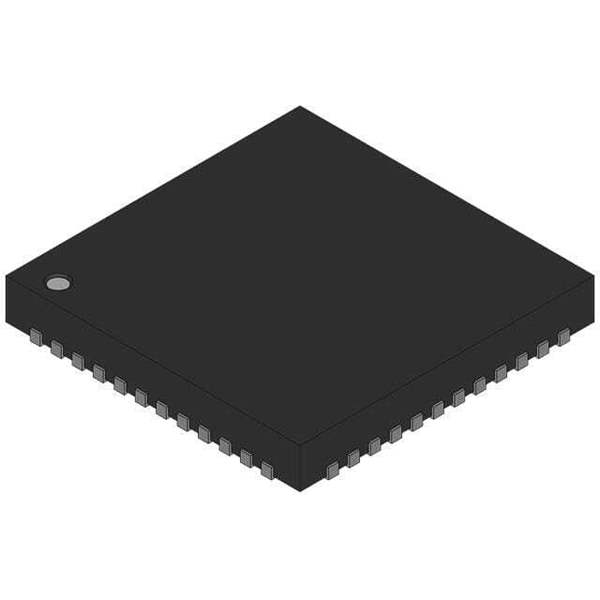

LM4682SQ/NOPB National Semiconductor (TI)
Same model may have multiple batches, images only for reference.

LM4682SQ/NOPB

Part No LM4682SQ/NOPB
Manufacturer National Semiconductor (TI)
Catalog Linear - Amplifiers - Audio
Description VOLUME CONTROL CIRCUIT / Amplifier IC 2-Channel (Stereo) with Stereo Headphones Class D 48-WQFN (7x7)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Linear - Amplifiers - Audio
Mfr National Semiconductor
Series Boomer®
Package Bulk
Product Status Obsolete
Type Class D
Output Type 2-Channel (Stereo) with Stereo Headphones
Max Output Power x Channels @ Load 10W x 2 @ 8Ohm; 80mW x 2 @ 32Ohm
Voltage - Supply 8.5V ~ 15V
Features Depop, Mute, PWM, Short-Circuit and Thermal Protection, Shutdown, Volume Control
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C (TA)
Supplier Device Package 48-WQFN (7x7)
Package / Case 48-WFQFN Exposed Pad
ECCN EAR99
HTSUS 8542.33.0001
Other Names 2156-LM4682SQ/NOPB,2156-LM4682SQ/NOPB-NSTR-ND,NATNSCLM4682SQ/NOPB
Standard Package 250
Win Source Part Number 1216296-LM4682SQ/NOPB
Ultra Librarian 3D Model Ultra Librarian LM4682SQ/NOPB CAD Model

Description

The LM4682SQ/NOPB is a 2-channel (stereo) class D audio amplifier with a maximum output power of 10W x 2 @ 8Ohm and 80mW x 2 @ 32Ohm.

  • Features: Depop, mute, PWM, short-circuit and thermal protection, shutdown, and volume control
  • Mounting: Designed for SMD (SMT) mounting
  • Package: 48-WFQFN exposed pad
  • Voltage Range: 8.5V to 15V
  • Temperature Range: -40°C to 85°C (TA)
  • Category: Linear - amplifiers - audio
