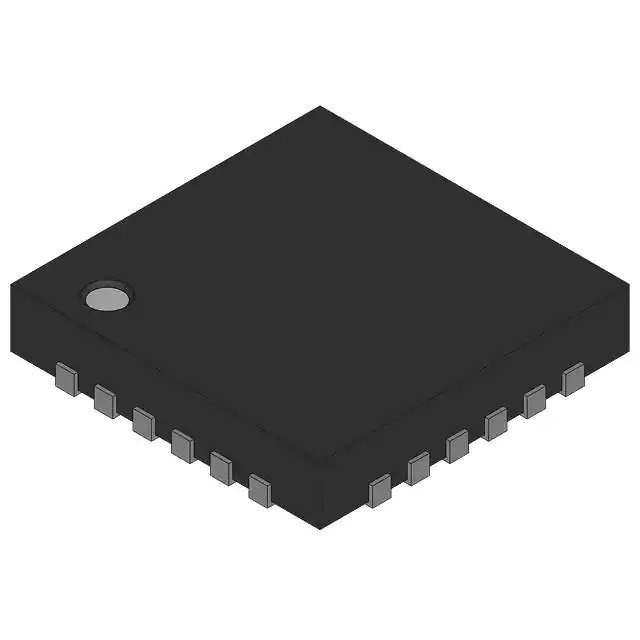

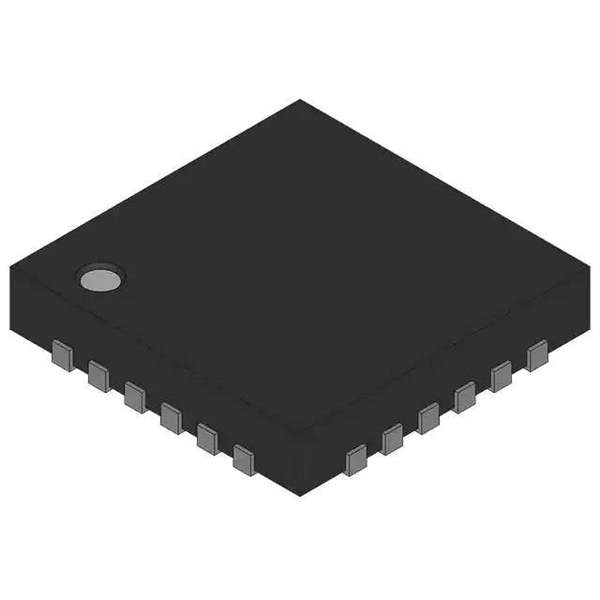

LMX2486SQ Real Image
Same model may have multiple batches, images only for reference.

LMX2486SQ

Part No LMX2486SQ
Manufacturer National Semiconductor (TI)
Catalog Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Description IC PLL FREQ SYNTH 24WQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Mfr National Semiconductor (TI)
Package Bulk
Product Status Active
Programmable Not Verified
Type PLL Frequency Synthesizer, Delta Sigma
PLL Yes
Input CMOS
Output CMOS
Number of Circuits 1
Frequency - Max 4.5GHz
Divider/Multiplier Yes/Yes
Voltage - Supply 2.5V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 24-WFQFN Exposed Pad
Supplier Device Package 24-WQFN (4x4)
Standard Package 1 pcs
MSL Level 2 (1 Year)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 619740-LMX2486SQ
Ultra Librarian 3D Model Ultra Librarian LMX2486SQ CAD Model

Description

The LMX2486SQ is a PLL frequency synthesizer designed for applications requiring high performance and low power consumption. It features a maximum frequency of 4.5GHz, making it suitable for a wide range of clock and timing applications.

  • Input/Output: CMOS
  • Includes: PLL and a divider/multiplier
  • Voltage Supply Range: 2.5V to 3.6V
  • Package: Surface mount
  • Design: Exposed pad
  • Manufacturer: National Semiconductor (TI)
  • Category: Integrated circuits
