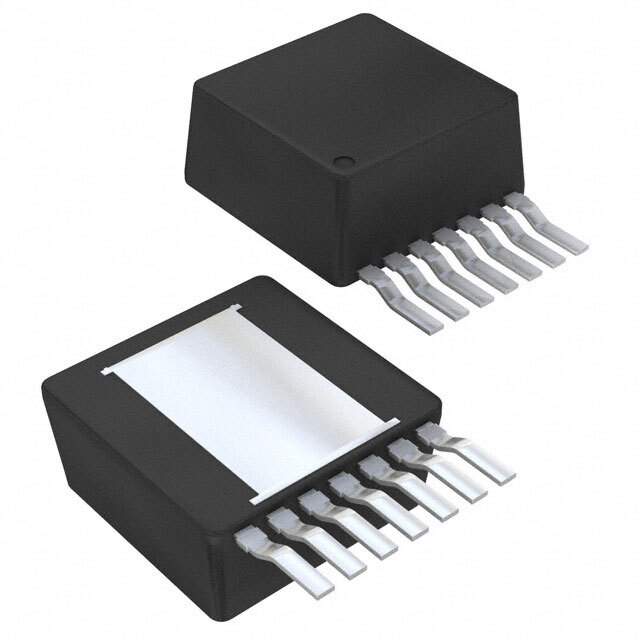

The LMZ12001TZX-ADJ is a SIMPLE SWITCHER® power module from Texas Instruments. It's an easy-to-use step-down (buck) regulator capable of delivering up to 1A of output current. The adjustable output voltage feature allows flexibility in designing power supplies for various applications. This module integrates the regulator, inductor, and passives into a single package, simplifying the design process and reducing board space.

Applications:

• Point-of-Load Regulation: Providing localized power to individual components or circuits on a PCB.
• Industrial Automation: Powering sensors, controllers, and other devices in industrial environments.
• Telecommunications Equipment: Regulating voltage for communication modules and infrastructure.
• FPGA/Microprocessor Power: Providing core and I/O power to FPGAs and microprocessors.

Features:

• 1A Output Current: Capable of delivering up to 1A of continuous output current.
• Adjustable Output Voltage: Output voltage can be adjusted using external resistors.
• Integrated Inductor: Integrated inductor simplifies design and reduces component count.
• Overcurrent Protection: Protects the module and the load from overcurrent conditions.
• Thermal Shutdown: Shuts down the module in case of excessive temperature.
• High Efficiency: High efficiency reduces power dissipation and improves overall system efficiency.
• SIMPLE SWITCHER® Design: Easy-to-use design simplifies power supply design.

Benefits:

• Simplified Design: Integrated components reduce design complexity and time.
• Reduced Board Space: Compact module saves valuable board space.
• Improved Reliability: Robust design ensures reliable operation in harsh environments.
• Increased Efficiency: High efficiency reduces power dissipation and improves system efficiency.
• Flexible Output Voltage: Adjustable output voltage allows for versatile applications.

Additional Details:

The LMZ12001TZX-ADJ requires external resistors to set the desired output voltage. The datasheet provides detailed information on selecting appropriate resistor values. This module also features overcurrent and thermal shutdown protection to enhance reliability. Proper thermal management is crucial for achieving optimal performance. Refer to the datasheet for thermal considerations and recommended PCB layout guidelines. The input voltage range must be adhered to for safe and reliable operation. Ensure adequate bypassing capacitors are placed close to the input pins.
