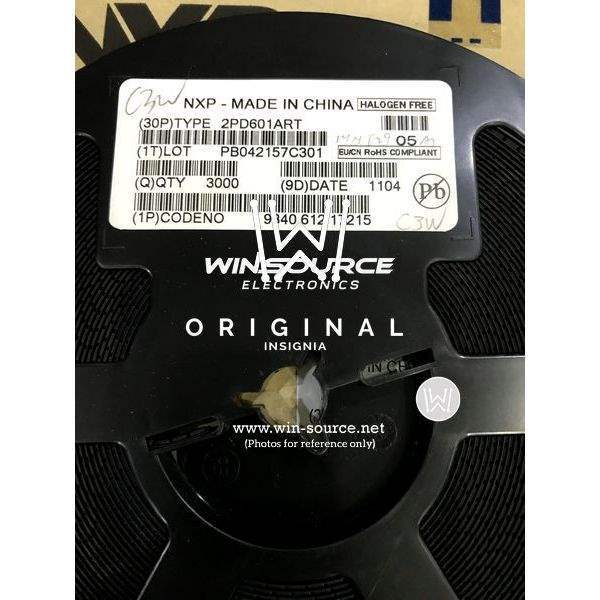

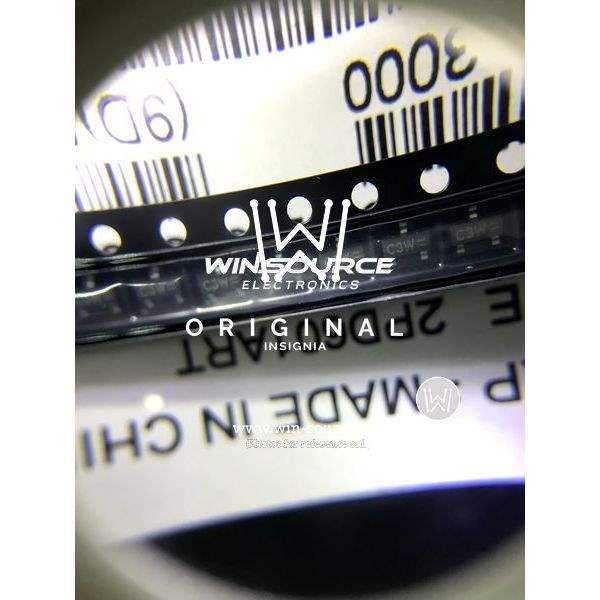

2PD601ART,215 Nexperia USA Inc. 2PD601ART,215 label picture 2PD601ART,215 real image
Same model may have multiple batches, images only for reference.
2PD601ART,215 Nexperia USA Inc. 2PD601ART,215 label picture 2PD601ART,215 real image
2PD601ART,215 Nexperia USA Inc. 2PD601ART,215 label picture 2PD601ART,215 real image
Same model may have multiple batches, images only for reference.

2PD601ART,215

Part No 2PD601ART,215
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS NPN 50V 0.1A SOT23-3
Datasheet
2PD601ART,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Cut Reel
Status Active
Transistor Polarity NPN
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Max Vce (sat) 250mV @ 10mA, 100mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 210 @ 2mA, 10V
Maximum Power Dissipation 250mW
Frequency - Transition 100MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package TO-236AB (SOT23)
Win Source Part Number 1004114-2PD601ART,215
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 2PD601ART,215 CAD Model

Description

The Nexperia USA Inc. 421701 is a high-performance NPN transistor designed for use in discrete semiconductor products.

  • Manufacturer: Nexperia USA Inc.
  • Product Name: 421701
  • Maximum Collector-Emitter Breakdown Voltage: 50V
  • Maximum Current Collector: 100mA
  • Typical Gain (hFE): 210 @ 2mA and 10V
  • Collector-Emitter Saturation Voltage: 250mV @ 10mA and 100mA
  • Package: TO-236AB (SOT23)
  • Mounting: SMD (SMT)
  • Maximum Power Dissipation: 250mW
  • Operating Temperature: Up to 150°C (TJ)
  • Status: Active
