The Nexperia USA Inc. 74ALVCH162601DGG is a 18-bit universal bus transceiver with 3-state outputs. This device is part of the ALVCH family of logic devices, known for their high speed and low voltage operation. It is commonly used in applications requiring high-performance data transmission.

Applications:

• Memory Interfacing
• Bus Driving
• Data Multiplexing
• Level Shifting
• General-Purpose Logic

Features:

• 18-bit Bus Transceiver
• 3-State Outputs
• Low Voltage Operation (3.3V)
• High Speed: tpd = 2.7 ns (typical)
• Low Noise

Benefits:

• High-speed data transmission
• Bidirectional data flow
• Reduced power consumption
• Improved signal integrity
• Simplified system design

Additional Details:

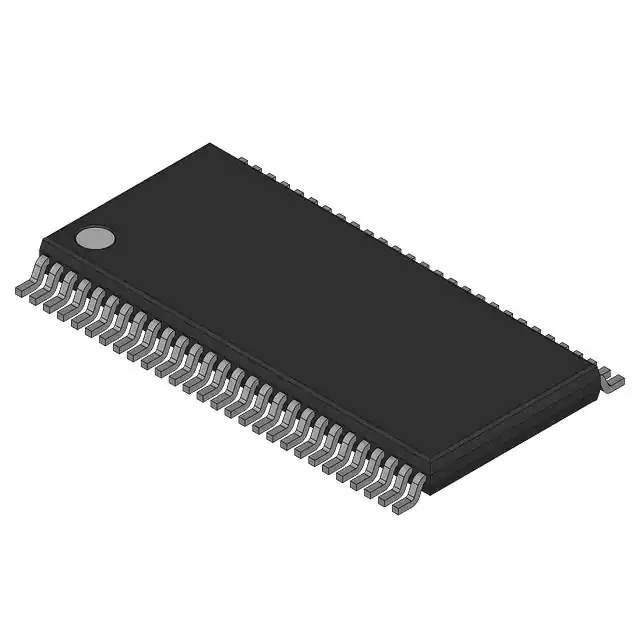

The 74ALVCH162601DGG's 3-state outputs allow for multiple devices to share the same bus without contention. The low voltage operation makes it suitable for battery-powered and low-power applications. The high-speed performance ensures that data can be transmitted quickly and efficiently. Nexperia's ALVCH family is designed to minimize noise and signal distortion, ensuring the integrity of the transmitted data. The device is typically packaged in a TSSOP (Thin Shrink Small Outline Package) or similar surface-mount package, making it easy to integrate into modern electronic designs. It is often used as a buffer, a level translator, or a multiplexer. The 74ALVCH162601DGG provides reliable, high-performance data transmission in demanding applications. The direction of data flow is controlled by one or more direction pins, allowing for flexible use in various system architectures.
