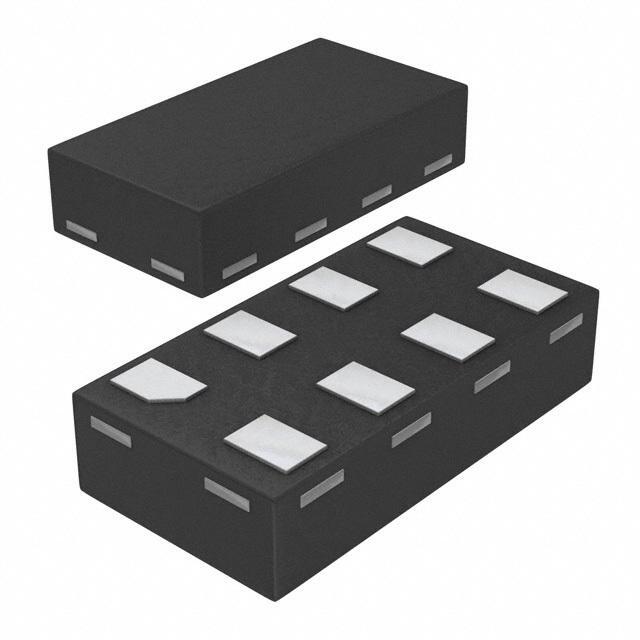

Same model may have multiple batches, images only for reference.
74LVC2G126GF,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74LVC2G126GF,115

Part No 74LVC2G126GF,115
Manufacturer Nexperia USA Inc.
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description IC BUS BUFFER/LINE DVR 8XSON
Datasheet
74LVC2G126GF,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Nexperia USA Inc.
Series 74LVC
Packaging Reel package
Logic Type Buffer, Non-Inverting
Number of Elements 2
Number of Bits per Element 1
Output Type Push-Pull
Current - Output High, Low 32mA, 32mA
Operating Supply Voltage 1.65 V ~ 5.5 V
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting SMD
Package 8-XFDFN
Manufacturer Package 8-XSON, SOT1089 (1.35x1)
Win Source Part Number 765742-74LVC2G126GF,115
Popularity Medium
Supply and Demand Status Limited
Family Name 74LVC2G126
Introduction Date March 10, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian 74LVC2G126GF,115 CAD Model

Description

The Nexperia USA Inc. 74LVC2G126GF,115 is a part of the 74LVC series in the electronic industry.

  • Logic Type: Buffer, Non-Inverting
  • Output Type: Push-Pull
  • Current Output High/Low: 32mA
  • Operating Supply Voltage: 1.65 V to 5.5 V
  • Halogen-Free Compliant: Yes
  • Popularity: Medium
  • Supply and Demand Status: Limited
