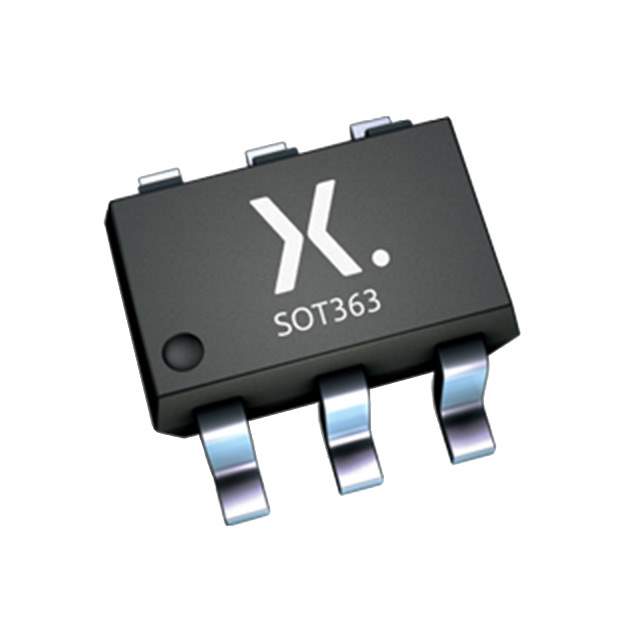

BAT54XYH Real Image
Same model may have multiple batches, images only for reference.

BAT54XYH

Part No BAT54XYH
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SC-88 / Diode Array 2 Pair Series Connection Schottky 30 V 200mA (DC) Surface Mount 6-TSSOP, SC-88, SOT-363
Datasheet
BAT54XYH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Configuration 2 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 800 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package 6-TSSOP
Base Product Number BAT54
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 1727-2723-6,568-13287-6,568-13287-6-ND,568-13287-2-ND,568-13287-1-ND,1727-2723-2,568-13287-2,1727-2723-1,2156-BAT54XYH-1727,568-13287-1,934059127125
Standard Package 3,000
Win Source Part Number 959152-BAT54XYH
Ultra Librarian 3D Model Ultra Librarian BAT54XYH CAD Model

Description

The Nexperia USA Inc. BAT54XYH is a Schottky diode that is designed for use in various electronic circuits.

  • Automotive, AEC-Q101 series: Yes
  • Small Signal Speed: less than 200mA (Io) and any speed
  • Maximum DC Reverse Voltage: 30V
  • Maximum Forward Voltage: 800mV @ 100mA
  • Reverse Leakage Current: 2μA @ 25V
  • Operating Temperature: up to 125°C
  • Configuration: 2 pair series connection
  • Average Rectified Current: 200mA (DC)
